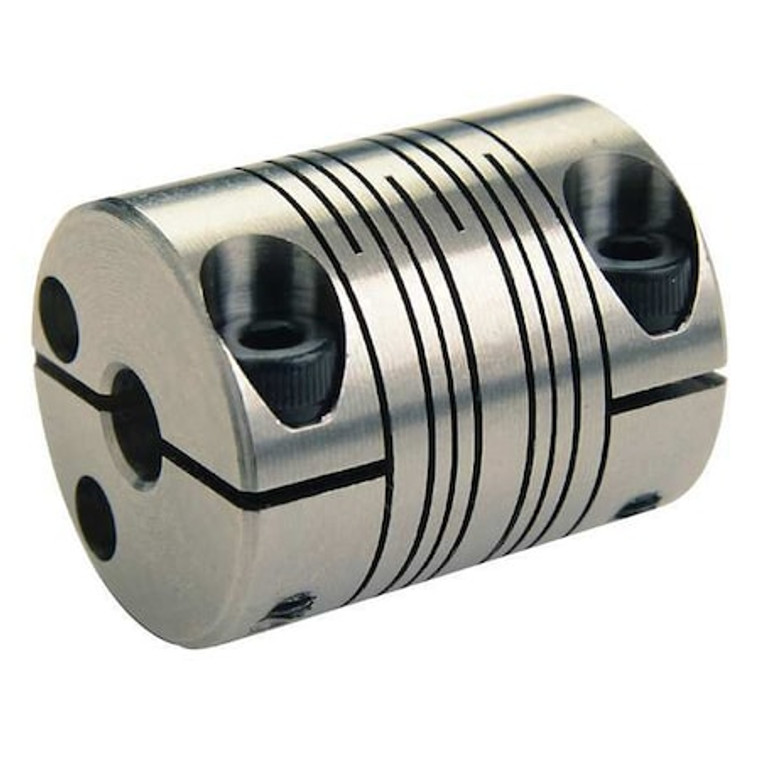

Coupling, 4 Beam Clamp, 11mmx11mm - PCMR32-11-11-SS

Coupling, 4 Beam Clamp, 11mmx11mm - PCMR32-11-11-SS

Ruland
SKU:
PCMR32-11-11-SS
|
UPC:
634529049372
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 11 mm, Bore Diameter 2 11 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 31.8 mm, Maximum Speed 6,000 RPM, Maximum Torque 7.91 N-m, Axial Motion 0.25 mm, Overall Length 38.1 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 1.75 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 17.6 mm
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
11mm x 11mm
Material - Couplings:
Stainless Steel
Outside Dia.:
31.8 mm
Overall Length:
38.1 mm
Finish:
Bright
Outside Dia. (mm):
31.8 mm
Size:
PCMR32
Max. Angular Misalignment:
3 Degrees
Length through Bore (mm):
17.02
Length through Bore:
17.02 mm
Max. RPM:
6,000 RPM
Clearance Dia. (mm):
28.6
Clearance Dia. (In.):
1.125 in
Outside Dia. (In.):
1.25
Screw Size (mm):
M4
Min. Bore (mm):
11
Torque (In.-Lbs.):
70
Torsional Stiffness (Deg./In.-Lbs.):
0.064
Rated Torque:
70 in-lb
Overall Length (In.):
1.5
Screw Size:
M4
Max. Bore (mm):
11 mm
Overall Length (mm):
38.1
Max. Parallel Misalignment (In.):
0.015 in
Screw Type:
Cap Screw
Length through Bore (In.):
0.67
Item - Motion Control Couplings:
Motion Control Coupling
Max. Temp.:
350 Degrees F
Style:
4-Beam Clamp
Material:
Stainless Steel
Max. Temp. Range (F):
350 Degrees
Max. Axial Misalignment (In.):
+/-0.01
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS Compliant
Application:
Light-Duty Power Transmission, Servo Motors to Lead Screws
Bore Tolerance:
+0.025/-0.000 mm
Screw Material:
Alloy Steel
For Environment:
Angular Misalignment, Axial Motion, Parallel Misalignment
Different Bore Sizes:
No
Zero Backlash:
Yes
Angular Misalignment:
3 Degrees
Maximum Operating Temperature:
176 Degrees C
Coupling Outside Diameter:
31.8 mm
Maximum Torque:
7.91 N-m
Bore Type:
Round
Parallel Misalignment:
0.38 mm
Bore Diameter 2:
11 mm
Coupling Material:
Stainless Steel
Bore Diameter 1:
11 mm
Coupling Material Grade:
303
Coupling Material Finish:
Bright
Fastener Tightening Torque:
4.6 N-m
Minimum Operating Temperature:
-40 Degrees C
Full Bearing Support Required:
Yes
Features:
Balanced Design for Reduced Vibration, Higher Torque Capacity, Larger Body Sizes than Single Beam Couplings, Lower Windup, Machined from a Single Piece of Material, Two Sets of Two Spiral Cuts, Zero-Backlash
Length Through Bore 1:
17.6 mm
Number of Locking Screws:
2
Dynamic Torque Reversing:
1.98 N-m
Moment of Inertia:
0.000026977 kgf/m sq
Shaft Tolerance:
+0.000/-0.013 mm
Torsional Stiffness:
1.75 N-m/Deg
Screw Thread Size:
M4
Screw Material Finish:
Black Oxide
Shaft Locking Type:
Clamp On
Length Through Bore 2:
17.6 mm
Number of Beams:
4
Dynamic Torque Non-Reversing:
3.96 N-m
Maximum Speed:
6,000 RPM
For Misalignment Type:
Angular, Axial, Parallel
Axial Motion:
0.25 mm
Series:
PCMR
Included Screws:
(2) Hex Socket Cap Screw
Package Quantity:
1
