Coupling, 4 Beam Clamp, 10mmx8mm - MWC25-10-8-SS
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland

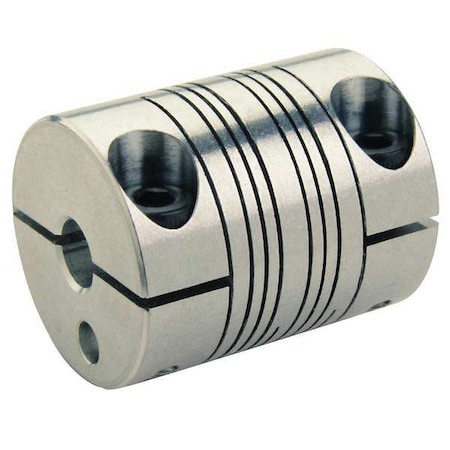

Coupling, 4 Beam Clamp, 10mmx8mm - MWC25-10-8-SS
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 8 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 4.6 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 1.2 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.2 mm
- Country of Origin:
- United States
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- Item:
- Motion Control Coupling
- System of Measurement:
- Metric
- Bore Dia.:
- 10mm x 8mm
- Material - Couplings:
- Stainless Steel
- Outside Dia.:
- 25 mm
- Overall Length:
- 30 mm
- Finish:
- Bright
- Length through Bore (In.):
- 0.543
- Length through Bore:
- 13.79 mm
- Max. Axial Misalignment (In.):
- +/-0.01
- Torsional Stiffness (Deg./In.-Lbs.):
- 0.094
- Length through Bore (mm):
- 13.79
- Size:
- MWC25
- Outside Dia. (In.):
- 0.984
- Overall Length (In.):
- 1.181
- Overall Length (mm):
- 30
- Max. Bore (In.):
- 0.375 in
- Screw Size (mm):
- M3
- Screw Type:
- Cap Screw
- Screw Size:
- M3
- Outside Dia. (mm):
- 25
- Clearance Dia. (In.):
- 0.984 in
- Max. RPM:
- 6,000 RPM
- Max. Parallel Misalignment (In.):
- 0.015 in
- Item - Motion Control Couplings:
- Motion Control Coupling
- Rated Torque:
- 41 in-lb
- Clearance Dia. (mm):
- 25
- Min. Bore (mm):
- 8
- Torque (In.-Lbs.):
- 41
- Max. Bore (mm):
- 10 mm
- Material:
- Stainless Steel
- Max. Temp.:
- 350 Degrees F
- Max. Temp. Range (F):
- 350 Degrees
- Style:
- 4-Beam Clamp
- Max. Angular Misalignment:
- 3 Degrees
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
- Application:
- Light-Duty Power Transmission, Servo Motors to Lead Screws
- Screw Material:
- Alloy Steel
- Bore Tolerance:
- +0.025/-0.000 mm
- Angular Misalignment:
- 3 Degrees
- Dynamic Torque Non-Reversing:
- 2.3 N-m
- Coupling Material Grade:
- 303
- Bore Diameter 1:
- 10 mm
- Bore Type:
- Round
- Length Through Bore 2:
- 14.2 mm
- Features:
- Balanced Design for Reduced Vibration
- Different Bore Sizes:
- Yes
- Maximum Torque:
- 4.6 N-m
- Torsional Stiffness:
- 1.2 N-m/Deg
- Parallel Misalignment:
- 0.38 mm
- Number of Beams:
- 4
- Coupling Material:
- Stainless Steel
- Length Through Bore 1:
- 14.2 mm
- Minimum Operating Temperature:
- -40 Degrees C
- Coupling Outside Diameter:
- 25 mm
- Included Screws:
- (2) Hex Socket Cap Screw
- Maximum Speed:
- 6,000 RPM
- Number of Locking Screws:
- 2
- Axial Motion:
- 0.25 mm
- Coupling Material Finish:
- Bright
- For Misalignment Type:
- Angular, Axial, Parallel
- Moment of Inertia:
- 0.000007871 kgf/m sq
- For Environment:
- Angular Misalignment, Axial Motion, Parallel Misalignment
- Series:
- MWC
- Maximum Operating Temperature:
- 176 Degrees C
- Zero Backlash:
- Yes
- Screw Thread Size:
- M3
- Bore Diameter 2:
- 8 mm
- Shaft Locking Type:
- Clamp On
- Fastener Tightening Torque:
- 2.1 N-m
- Shaft Tolerance:
- +0.000/-0.013 mm
- Screw Material Finish:
- Black Oxide
- Full Bearing Support Required:
- Yes
- Dynamic Torque Reversing:
- 1.15 N-m
- Package Quantity:
- 1
-
-
