Coupling, 4 Beam Clamp, 10mmx6mm - MWC25-10-6-A
RulandLog in for pricing
(No reviews yet)
Write a Review
Ruland
Coupling, 4 Beam Clamp, 10mmx6mm - MWC25-10-6-A
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 10 mm, Bore Diameter 2 6 mm, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.1 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes Yes, Torsional Stiffness 0.57 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.2 mm
- Country of Origin:
- United States
- Item:
- Motion Control Coupling
- Shaft Locking Type - Couplings:
- 1 Piece Clamp
- System of Measurement:
- Metric
- Bore Dia.:
- 10mm x 6mm
- Material - Couplings:
- Aluminum
- Outside Dia.:
- 25 mm
- Overall Length:
- 30 mm
- Finish:
- Bright
- Rated Torque:
- 27 in-lb
- Length through Bore (mm):
- 13.79
- Overall Length (mm):
- 30
- Max. Bore (In.):
- 0.25 in
- Screw Size (mm):
- M3
- Material:
- Aluminum
- Overall Length (In.):
- 1.181
- Max. RPM:
- 6,000 RPM
- Torsional Stiffness (Deg./In.-Lbs.):
- 0.198
- Length through Bore:
- 13.79 mm
- Clearance Dia. (mm):
- 25
- Size:
- MWC25
- Length through Bore (In.):
- 0.543
- Max. Bore (mm):
- 10 mm
- Max. Temp.:
- 225 Degrees F
- Item - Motion Control Couplings:
- Motion Control Coupling
- Max. Parallel Misalignment (In.):
- 0.01 in
- Outside Dia. (mm):
- 25
- Max. Axial Misalignment (In.):
- +/-0.015
- Outside Dia. (In.):
- 0.984
- Max. Temp. Range (F):
- 225 Degrees
- Min. Bore (mm):
- 6
- Screw Size:
- M3
- Max. Angular Misalignment:
- 3 Degrees
- Screw Type:
- Cap Screw
- Clearance Dia. (In.):
- 0.984 in
- Torque (In.-Lbs.):
- 27
- Style:
- 4-Beam Clamp
- Application:
- Light-Duty Power Transmission, Servo Motors to Lead Screws
- Standards:
- Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
- Bore Tolerance:
- +0.025/-0.000 mm
- Screw Material:
- Alloy Steel
- Coupling Material:
- Aluminum
- Length Through Bore 1:
- 14.2 mm
- Bore Diameter 2:
- 6 mm
- Axial Motion:
- 0.25 mm
- Coupling Material Finish:
- Bright
- Number of Beams:
- 4
- Series:
- MWC
- Maximum Torque:
- 3.1 N-m
- Dynamic Torque Non-Reversing:
- 1.55 N-m
- Number of Locking Screws:
- 2
- Torsional Stiffness:
- 0.57 N-m/Deg
- Bore Type:
- Round
- Coupling Outside Diameter:
- 25 mm
- Full Bearing Support Required:
- Yes
- Bore Diameter 1:
- 10 mm
- Minimum Operating Temperature:
- -40 Degrees C
- Dynamic Torque Reversing:
- 0.78 N-m
- Parallel Misalignment:
- 0.38 mm
- For Environment:
- Angular Misalignment, Axial Motion, Parallel Misalignment
- Shaft Tolerance:
- +0.000/-0.013 mm
- Coupling Material Grade:
- 7075
- Screw Thread Size:
- M3
- Length Through Bore 2:
- 14.2 mm
- Shaft Locking Type:
- Clamp On
- Maximum Operating Temperature:
- 107 Degrees C
- Screw Material Finish:
- Black Oxide
- Zero Backlash:
- Yes
- Moment of Inertia:
- 0.000002955 kgf/m sq
- Fastener Tightening Torque:
- 2.1 N-m
- Different Bore Sizes:
- Yes
- Maximum Speed:
- 6,000 RPM
- Included Screws:
- (2) Hex Socket Cap Screw
- Features:
- Balanced Design for Reduced Vibration
- For Misalignment Type:
- Angular, Axial, Parallel
- Angular Misalignment:
- 3 Degrees
- Package Quantity:
- 1
-
-
Coupling, 4 Beam Clamp, 10mmx6mm - PCMR25-10-6-SS
Manufacturer: Ruland
MFR # PCMR25-10-6-SS
Log in for pricing
-

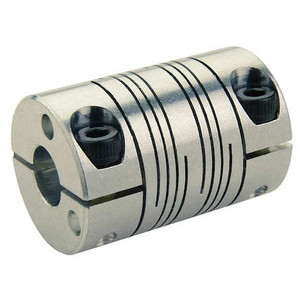

Coupling, 6 Beam Clamp, 10mmx6mm - FCMR25-10-6-A
