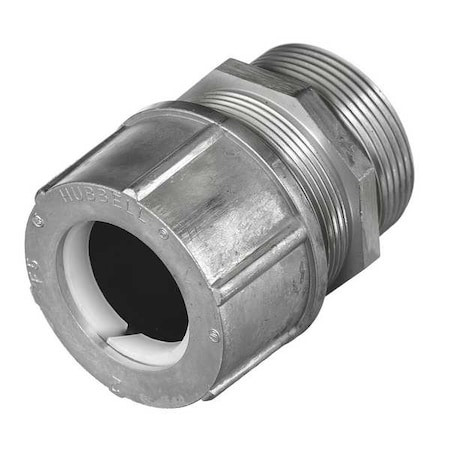

Cord Connector, 2-1/2 in., Straight, White - SHC1078

Cord Connector, 2-1/2 in., Straight, White - SHC1078

Hubbell Wiring Device-Kellems
SKU:
SHC1078
|
UPC:
783585200781
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Liquid Tight Cord Connector, Cord Dia. Range 1.94 in to 2.06 in, Box Connection 2 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 11/16 in, Insulated No
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Liquid Tight Cord Connector
Material:
Aluminum
Box Connection:
2 1/2 in MNPT
Number of Cords:
1
Liquid Tight / Dust Tight:
Liquid Tight
Material - External Strain Relief:
No External Strain Relief
Body Color - Cord Connector:
Silver
Color:
White
Item - Cord Connector:
Liquid Tight Cord Connector
Gland Color Code:
No Code
Hub Trade Size:
2-1/2";Style - Connector=Straight"
Hazardous Location Rating:
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Length - External Strain Relief:
No External Strain Relief
Strain Relief Type:
No External Strain Relief
Cord Dia. Range:
1.94 in to 2.06 in
Male/Female:
Male
Insulated:
No
Length - Box to End of Connector:
2 11/16 in
Length:
4.00";Min. Throat Dia.=2.32""
Connector Type:
Straight
Material - Cord Connector:
Aluminum
Standards:
CSA Certified, Title 46-Part 111, UL 514B, United States Coast Guard Approval
Hub Size:
2 1/2 in MNPT
For Use With:
Kellems Wire Management
Bushing Material:
Neoprene
Grommet Color Code:
No Code
Collar Material:
Aluminum
Maximum Operating Temperature:
240 Degrees F
Body Material:
Aluminum
IP Rating:
IP66
Compatible Conduit Type:
Liquid Tight Cord Connector
For Maximum Cable OD:
2.06 in
Connection Orientation:
Straight
Liquid Tight:
Yes
For Minimum Cable OD:
1.94 in
Thread Type:
NPT Thread
Environmental Rating:
Hazardous Locations
Thread Size:
2 1/2 in
Compatible Conduit Trade Size:
2 1/2 in
Overall Length:
4 in
Form Size:
F7
Minimum Operating Temperature:
-30 Degrees F
Body Color:
Silver
Thread Gender:
Male
NEMA Rating:
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Dimension B:
2.70 (68.6) Ref."
Effective Operating Temperature:
-30°F to +240°F (-34°C to +115°C)
Material/Style:
Aluminum
Dimension C:
1.30 (33.0)"
Dimension E A/C:
4.34 (110.2)"
Color Code:
White
Recommended Knockout Hole Size:
2.95- 3.00" (75.0-76.2)"
Cord Diameter Range:
1.94- 2.06" (49.2- 52.4)"
Cord Connector Body Style:
Straight Male
Certifications:
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Dimension D:
2.32 (58.9) Throat Dia."
Dimension A:
3.85 (97.8) Dia."
Dimension E A/F:
4.02 (102.1)"
Hazardous Locations:
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Product Type:
Cord Connectors
Flammability:
Hubbell nylon cord connectors have a UL 94-V2 rating.
Conductor Range:
1.94-2.06 in (49.2- 52.4 mm)
Performance:
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C)
Environmental Conditions:
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number Of Conductors:
Single
Application:
Straight Male- Form 7
Type:
Straight Male
Temperature Rating:
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Display Size:
2 1/2 NPT"
Industry Standard(s):
UL Listed
Series:
Standard Duty
Item Type:
Cord Connectors
Material - Mounting Hardware:
Locknut or Tapped Opening
OEM Brand Name:
Hubbell Wiring Device-Kellems
Package Quantity:
1
