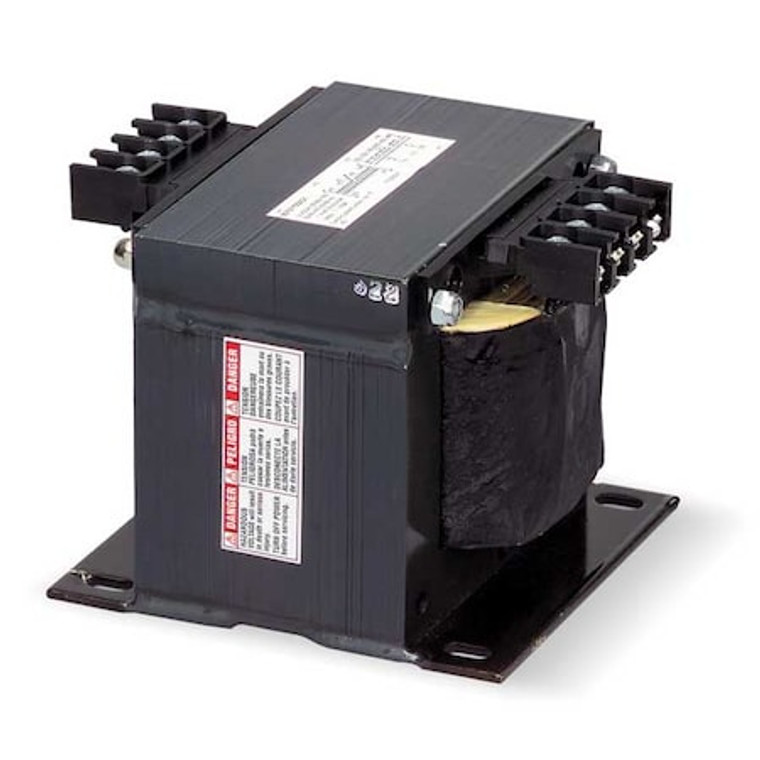

Control Transformer, 5 kVA, Not Rated, 115°C, 120V AC, 240/480V AC - 9070T5000D1

Control Transformer, 5 kVA, Not Rated, 115°C, 120V AC, 240/480V AC - 9070T5000D1

Square D
SKU:
9070T5000D1
|
UPC:
785901876113
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 5 kVA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 115 Degrees C, Enclosure Finish Epoxy Resin Varnish
Additional Information
Country of Origin:
United States
Item:
Control Transformer
Input Voltage - Transformer:
240/480V AC
Output Voltage - Transformer:
120V AC
VA Rating - Transformer:
5 kVA
Phase - Electrical:
1
Mounting - Transformer:
Foot
Hz - Electrical:
50/60 Hz
Enclosure Rating:
Not Rated
Winding Material - Transformer:
Copper
Temp. Rise:
115°C
Height:
8.46 in
Width:
8.73 in
Depth:
9 in
Protective Device:
None
Enclosure Finish:
Epoxy Resin Varnish
Fused:
No
Standards:
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Manufacturers Warranty Length:
10 yr
Enclosure Style - Transformer:
Open
Includes:
24 in Pre-Wired Primary and Secondary Leads
Green Environmental Attribute:
Mercury Free; Pvc Free
Secondary Connection:
Screw clamp terminals
Enclosure Type:
Open
Primary Connection:
Screw clamp terminals
Insulation Max. Temp.:
180 °C
Package Quantity:
1
