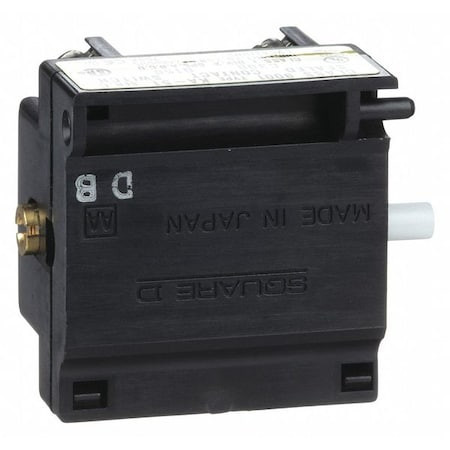

Contact Block, 1NO + 1 C/O, 30mm - 9001KA51

Contact Block, 1NO + 1 C/O, 30mm - 9001KA51

Schneider Electric
SKU:
9001KA51
|
UPC:
785901827498
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Contact Block, Contact Form 1NO/1NC, Contact Rating 3A @ 240V AC, For Use With Schneider 9001K Series 30mm Operators, Action Momentary, 30 mm, Application Finger Safe Operator, NEMA Contact Rating Designation C300/Q150, Color Black, Terminal Connection Screw/Clamp, Standards UL 508, Safety Rating Class II Conforming to IEC 61140
Additional Information
Country of Origin:
Japan
Item:
Contact Block
Contact Rating:
3A @ 240V AC
Size:
30 mm
Action:
Momentary
Application:
Finger Safe Operator
Contact Form:
1NO/1NC
Color:
Black
Safety Rating:
Class II Conforming to IEC 61140
NEMA Contact Rating Designation:
C300/Q150
Standards:
UL 508
Terminal Connection:
Screw/Clamp
For Use With:
Schneider 9001K Series 30mm Operators
Product Certifications:
NEMA || UL 508
Ambient Air Temperature For Operation:
-25-70°C
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
[Icm] Rated Short-Circuit Making Capacity:
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
Contact Operation:
power reed || hermetically sealed
Contacts Type And Composition:
1 C/O
[Us] Rated Supply Voltage:
240 V
Shape Of Screw Head:
cross slotted
Ambient Air Temperature For Storage:
-40-70°C
Device Short Name:
9001K
[Ith] Conventional Free Air Thermal Current:
10 A
Contacts Usage:
hermetically sealed contacts
Short-Circuit Protection:
10 A cartridge fuse IEC 60947-5-1
Tightening Torque:
0.8-0.8 N.m IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV IEC 60947-1
Electrical Shock Protection Class:
class II IEC 61140
Shock Resistance:
50 gn IEC 60068-2-27
Positive Opening:
without
Rated Breaking Capacity:
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Connections - Terminals:
screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² IEC 60947-1, screw-clamp terminals
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Protective Treatment:
TC
Product Or Component Type:
contact block
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Rated Short Circuit Making Capacity:
12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.55 kA 125 V DC-13; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13
Conventional Free Air Thermal Current:
10 A
Rated Operational Current:
3 A 240 V, AC-15, A600-Q600 NEMA; 0.55 A 125 V, DC-13, A600-Q600 NEMA
AC Contact Rating:
0.5 A @ 240 V, 1 A @ 120 V
Manufacturer Warranty Length:
18 mo
Includes Mounting Block:
Not Applicable
Terminal Connection Type:
Screw Clamp Terminals
Connection Size:
30 mm
Compatible Operator:
Push Button
DC Contact Rating:
0.5 A @ 115 V
Switch Action:
Momentary/Power Reed
Compatible with Series:
9001K, 9001SK
Package Quantity:
1
