Conduit Outlet Body, Iron, 2-1/2 In. - MOLBD-7M

Conduit Outlet Body, Iron, 2-1/2 In. - MOLBD-7M

Killark
SKU:
MOLBD-7M
|
UPC:
783936555355
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

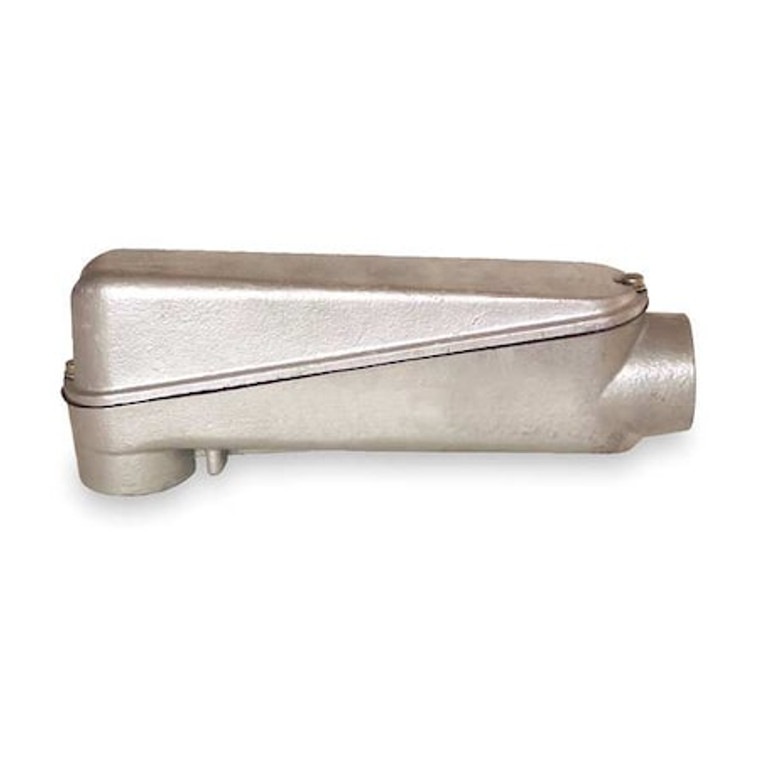

Conduit Outlet Body, Overall Width 10 in, Overall Height 8 in, Overall Length 21 in, Trade Size 2 1/2 in, Compatible Conduit Trade Size 1/2 in, Hub Size 2 1/2 in, Iron, Moguls, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 742.5 cu in, Body Style LB, Body Type Conduit Outlet Body, Color Gray, Connection Orientation 90 Degrees , Connection Type Threaded, Cover Included Yes, Finish Powder Coated, For Use With IMC, RMC, Gasket Included Yes, Hazardous Location No
Additional Information
Country of Origin:
United States
Conduit Outlet Body Type:
Conduit Outlet Body
Item:
Conduit Outlet Body
Hazardous Location:
No
Hub Size:
2-1/2
Series:
Moguls
Conduit Outlet Body Material:
Iron
Conduit Outlet Body Style:
LB
Material:
Iron
Conduit Outlet Body Capacity:
742.5 cu in
Conduit Outlet Body Hub Size:
2 1/2 in
Conduit Outlet Body Hub Style:
Threaded
For Use With:
IMC, RMC
Special Features:
A raised dome cover permits additional wiring room. Furnished with captive ss screws and gasket. Volume is 319 cu. in.
Color:
Glossy gray
Back Type:
Flat
Standards:
UL
Conduit Outlet Hub Size:
2-1/2";Form=Form 85"
Finish:
Powder Epoxy Paint
Body Style:
LB
Body Type:
Conduit Outlet Body
Overall Length:
21 in
Connection Orientation:
90 Degrees
Hub Style:
Threaded
Thread Gender:
Female
Number of Hubs:
2
Compatible Conduit Type:
IMC, RMC
Compatible Conduit Trade Size:
1/2 in
Overall Height:
8 in
Thread Type:
NPT
Connection Type:
Threaded
Overall Width:
10 in
Body Capacity:
742.5 cu in
Shape:
LB
Gasket Included:
Yes
Trade Size:
2 1/2 in
Thread Size:
2 1/2 in
Cover Included:
Yes
Height:
8 in
Length:
21 in
Width:
10.000 in
Finish Type:
Powder Epoxy Paint
Dimensions:
21 in x 10 in x 8 in
Each - Width:
10.000 in
Package Net Weight:
46.5
Hub Pattern:
LB
Hazardous Location Rating:
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Hazardous Rating(s):
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Type:
Mogul Conduit Body With Cover & Gasket
Application:
Mogul fittings are for use with rigid and IMC raceways. Use where standard conduit bodies do not provide adequate access and wiring area for the pulling of large and heavy conductors. For right angle bends where splices, pulls, and taps are needed in
Package Quantity:
1
