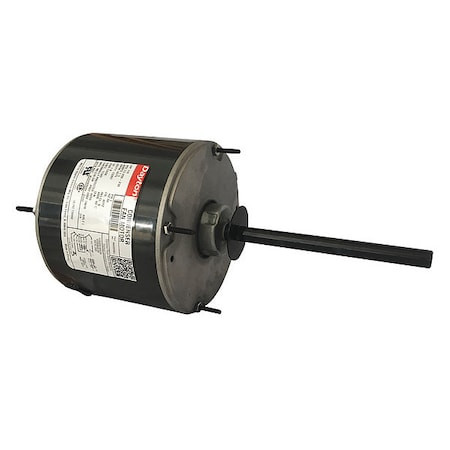

Condenser Fan Motor, 1/4 HP, 1075 rpm, 60Hz - 4M205

Condenser Fan Motor, 1/4 HP, 1075 rpm, 60Hz - 4M205

Dayton
SKU:
4M205
|
UPC:
190735330227
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48YZ Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 1/16 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 1.5-1.4 A, Ins. Class B, Motor Service Factor 1
Additional Information
Country of Origin:
Multiple
Motor Design:
Permanent Split Capacitor
Phase:
Single
HP:
1/4
RPM Range:
1,001-1,100
No. of Speeds:
1
Voltage:
208-230V AC
Motor Shaft Rotation:
CW/CCW
Frame:
48YZ
Motor Enclosure Design:
Totally Enclosed Air-Over
Motor Mounting Type:
Stud
Motor Shaft Design:
Double-Flat
Duty:
Continuous
Motor Mounting Position:
All Angle
Hz:
60 Hz
Length Less Shaft:
5 7/8 in
Overall Length:
9 9/16 in
Max. Ambient Temp.:
60 Degrees C
Voltage Compatibility:
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Bearings:
Ball
Standards:
CSA Certified (258501), UL Recognized (E47479)
Item:
Condenser Fan Motor
Motor Service Factor:
1
Lead Length:
30 in
Body Dia.:
5 5/8 in
Motor Thermal Protection:
Auto
Motor Application:
HVAC/R
Motor Sub Application:
Condenser Fan
Nameplate RPM:
1,075
Bolt Circle Dia.:
5 1/8 in
Shaft Length:
6 1/16 in
Full Load Amps:
1.5-1.4 A
Capacitor Required:
2MDV4
Features:
Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Mounting Stud Pattern:
3 5/8 in x 3 5/8 in
Stud Quantity:
4
Shaft Dia.:
1/2 in
Stud Size:
8-32 NC-2A x 3/4 in
Application:
Direct-Drive Blower
Ins. Class:
B
Duty Cycle:
Continuous
Mounting:
Stud
Package Quantity:
1
