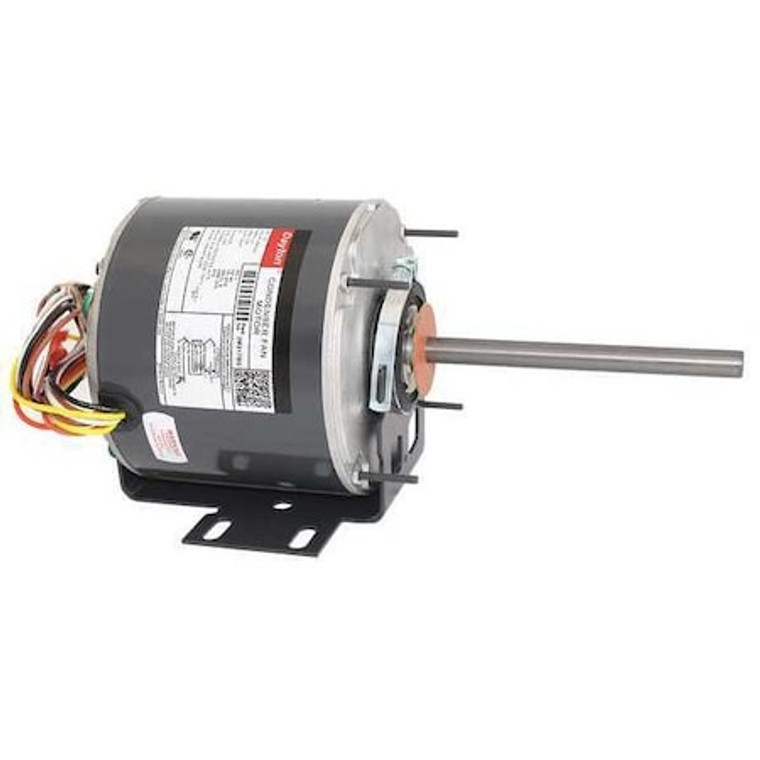

Condenser Fan Motor, 1/3 HP, 1075 rpm, 60Hz - 3M217BG

Name: Condenser Fan Motor, 1/3 HP, 1075 rpm, 60Hz - 3M217BG
Brand: Dayton
SKU: 3M217BG
Price: 208.14 USD
Availability: InStock

Dayton

SKU:

3M217BG

UPC:

190735291511

Availability:

In Stock

(No reviews yet)

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/3 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48YZ Frame, Motor Enclosure Design Open Air-Over, Cradle Base Motor Mounting Type, Motor Mounting Position Horizontal or Vertical Shaft Up, Shaft Dia. 1/2 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 2.3 A, Ins. Class B

Country of Origin:: Multiple
Motor Design:: Permanent Split Capacitor
Phase:: Single
HP:: 1/3
RPM Range:: 1,001-1,100
No. of Speeds:: 1
Voltage:: 208-230V AC
Motor Shaft Rotation:: CW/CCW
Frame:: 48YZ
Motor Enclosure Design:: Open Air-Over
Motor Mounting Type:: Cradle Base
Nominal Efficiency:: 71.2 %
Motor Thermal Protection:: Auto
Overall Length:: 11 11/16 in
Shaft Length:: 6 in
Motor Sub Application:: Condenser Fan
Full Load Amps:: 2.3 A
Ins. Class:: B
Motor Shaft Design:: Double-Flat
Item:: Condenser Fan Motor
Length Less Shaft:: 5 5/8 in
Max. Ambient Temp.:: 60 Degrees C
Body Dia.:: 5 5/8 in
Shaft Dia.:: 1/2 in
Voltage Compatibility:: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Service Factor:: 1
Motor Bearings:: Ball
Hz:: 60 Hz
Stud Size:: 8-32 UNF-2A x 1 in (Shaft End)
Features:: Reversing Plug, Totally Enclosed Shaft Endshield and Shell
Includes:: Capacitor
Motor Mounting Position:: Horizontal or Vertical Shaft Up
Motor Application:: HVAC/R
Application:: Condenser Fan
Capacitor Required:: Included
Bolt Circle Dia.:: 5 1/8 in
Mounting Stud Pattern:: 3 5/8 in x 3 5/8 in
Stud Quantity:: 4
Lead Length:: 30 in
Duty:: Continuous
Nameplate RPM:: 1,075
Standards:: CSA Certified (258501), UL Recognized (E37403)
Duty Cycle:: Continuous
Package Quantity:: 1
