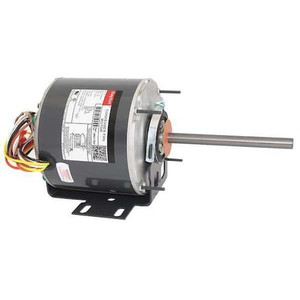

Condenser Fan Motor, 1/3 HP, 1075 rpm, 60Hz - 3LU96

Name: Condenser Fan Motor, 1/3 HP, 1075 rpm, 60Hz - 3LU96
Brand: Dayton
SKU: 3LU96
Price: 210.44 USD
Availability: InStock

Dayton

SKU:

3LU96

UPC:

190735291283

Availability:

In Stock

(No reviews yet)

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/3 HP, No. of Speeds 1, Voltage 460V AC, Motor Shaft Rotation CW/CCW, 48YZ Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 1.0 A, Ins. Class B, Motor Service Factor 1

Country of Origin:: Multiple
Motor Design:: Permanent Split Capacitor
Phase:: Single
HP:: 1/3
RPM Range:: 1,001-1,100
No. of Speeds:: 1
Voltage:: 460V AC
Motor Shaft Rotation:: CW/CCW
Frame:: 48YZ
Motor Enclosure Design:: Totally Enclosed Air-Over
Motor Mounting Type:: Stud
Standards:: CSA Certified (258501), UL Recognized (E37403)
Features:: Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Stud Quantity:: 4
Motor Service Factor:: 1
Lead Length:: 30 in
Stud Size:: 8-32 NC-2A
Full Load Amps:: 1.0 A
Ins. Class:: B
Hz:: 60 Hz
Motor Mounting Position:: All Angle
Application:: Condenser Fan
Item:: Condenser Fan Motor
Motor Sub Application:: Condenser Fan
Capacitor Required:: 2MDV6
Length Less Shaft:: 6 3/8 in
Motor Application:: HVAC/R
Mounting Stud Pattern:: 3 5/8 in x 3 5/8 in
Voltage Compatibility:: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Overall Length:: 10 1/16 in
Motor Shaft Design:: Double-Flat
Nominal Efficiency:: 67.4 %
Motor Thermal Protection:: Auto
Max. Ambient Temp.:: 60 Degrees C
Motor Bearings:: Ball
Bolt Circle Dia.:: 5 1/8 in
Body Dia.:: 5 5/8 in
Duty:: Continuous
Shaft Dia.:: 1/2 in
Shaft Length:: 6 in
Nameplate RPM:: 1,075
Duty Cycle:: Continuous
Mounting:: Stud
Package Quantity:: 1
