Submersible Pump, 0.6 A, 115V AC, 1/125 hp, 7 ft Max Head, 1/4 in Intake and Disch, Epoxy Encap - 518200
Manufacturer: Little Giant Pump
MFR # 518200
Log in for pricing
Condensate Removal Pump, 1/2 gal Tank, 1/30 hp, 115V AC, 20 ft Max. Head - 553240
Little Giant PumpLog in for pricing
(No reviews yet)
Write a Review
Little Giant Pump
Condensate Removal Pump, 1/2 gal Tank, 1/30 hp, 115V AC, 20 ft Max. Head - 553240
Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/5 hp, Includes Control Float, Filter Screen, Nylon Sump Pan, Thermal Overload Protector, Intake Connection Style Open, Maximum Feet of Head 45 ft, Maximum Flow Rate @ 10 Feet of Head 6.9 gpm, Maximum Flow Rate @ 15 Feet of Head 6.3 gpm, Maximum Flow Rate @ 1 Foot of Head 7.5 gpm, Maximum Media Temperature 110 Degrees F, Nameplate Voltage 115V AC, Plenum Rated No, Pump Type Standard, Series VCL-45ULS, Series Family VCL
- Country of Origin:
- Mexico
- Condensate Pumps - Type:
- Condensate
- Item:
- Condensate Removal Pump
- Voltage:
- 120
- Reservoir Size - Pumps:
- Large
- HP - Pumps:
- 1/5 hp
- Voltage - Pumps:
- 120V AC
- Reservoir Capacity - Pumps:
- 1 gal
- Discharge Size - Pumps:
- 3/8 in Copper Tube
- Max. Temp - Pumps:
- 110 Degrees F
- GPH of Water @ 30 Ft. of Head:
- 250
- GPH of Water @ 40 Ft. of Head:
- 135
- GPH of Water @ 9 Ft. of Head:
- 415
- Shaft Material:
- Stainless Steel
- HP:
- 1/5
- Cord Length:
- 2.9 ft
- Includes:
- Control Float, Filter Screen, Nylon Sump Pan, Thermal Overload Protector
- Watts:
- 185 W
- GPH of Water @ 12 Ft. of Head:
- 400
- Discharge:
- 3/8 Copper Tube"
- Length:
- 12 in
- Max. Head - Pumps:
- 45 ft
- GPH of Water @ 15 Ft. of Head:
- 380
- Pump Type:
- Standard
- Reservoir Capacity:
- 1 gal.
- GPH of Water @ 1 Ft. of Head:
- 450
- GPH of Water @ 5 Ft. of Head:
- 440
- Float Material:
- Polypropylene
- Max. Temp.:
- 110 Degrees F
- Amps:
- 0.8 A
- Shut-Off:
- 45 ft.
- Width:
- 6 in
- Height:
- 10 1/2 in
- Max. Pressure:
- 19.5 psi
- Standards:
- BAU Approved, CE, TUV Approved
- Tank Material:
- ABS Plastic
- Overall Height:
- 10.5 in
- Overall Length:
- 12 in
- Overall Width:
- 6 in
- Body Gasket Material:
- Stainless Steel
- Compatible Intake Pipe Size:
- 1 1/8 in
- Phase:
- Single
- Maximum Flow Rate @ 1 Feet of Head:
- 7.5 gpm
- Tank Capacity:
- 1 gal
- Maximum Flow Rate @ 10 Feet of Head:
- 6.9 gpm
- Maximum Flow Rate @ 40 Feet of Head:
- 1.3 gpm
- Discharge Connection Style:
- Barbed
- Turn On Level:
- 3.5 in
- Frequency:
- 60 Hz
- Maximum Feet of Head:
- 45 ft
- Maximum Flow Rate @ 25 Feet of Head:
- 4.2 gpm
- Pump Housing Material:
- ABS Plastic
- Nameplate Voltage:
- 115V AC
- Series Family:
- VCL
- Plenum Rated:
- No
- Horsepower:
- 1/5 hp
- Pump Activation Type:
- Float Switch
- Maximum Flow Rate @ 15 Feet of Head:
- 6.3 gpm
- Maximum Operating Pressure:
- 19.5 psi
- Maximum Ambient Temperature:
- 110 Degrees F
- Maximum Flow Rate @ 30 Feet of Head:
- 3.3 gpm
- Shut Off Level:
- 1.9 in
- Compatible Discharge Pipe Size:
- 3/8 in
- Maximum Media Temperature:
- 110 Degrees F
- For Use With Potable Systems:
- No
- Series:
- VCL-45ULS
- Manufacturer Warranty Length:
- 1 yr
- Electrical Connection Type:
- Cord with Plug
- Intake Connection Style:
- Open
- Compatible Media Type:
- Water
- Maximum Flow Rate @ 5 Feet of Head:
- 7.3 gpm
- Package Quantity:
- 1
-
-

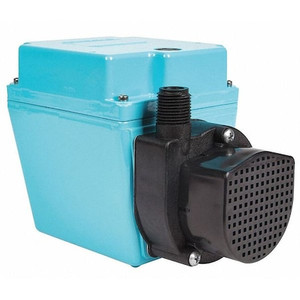

Submersible Pump, 3.2 A, 15V AC, 1/15 hp, 16.8 ft Max Head, 1/2 in, 1/2 in Intake and Discharge - 503103
Manufacturer: Little Giant Pump
MFR # 503103
Log in for pricing
-
Self Priming Centrifugal Pump, 1/2 hp, 115/230V AC, 1 Phase, 78 ft Max Head - 4UA67
Manufacturer: Dayton
MFR # 4UA67
Log in for pricing
-
Self Priming Centrifugal Pump, 1 1/2 hp, 115/208 to 230V AC, 1 Phase, 96 ft Max Head - 4UA71
Manufacturer: Dayton
MFR # 4UA71
Log in for pricing
