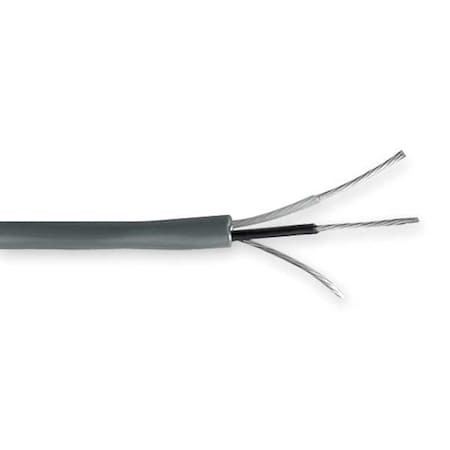

Comm Cable, Shielded, 22/2, 500 Ft. - C2514A.18.10

Comm Cable, Shielded, 22/2, 500 Ft. - C2514A.18.10

Carol
SKU:
C2514A.18.10
|
UPC:
79407048922
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Communication Cable, Cable Length 500 ft, Fire Rating Commercial, Number of Strands 7, Conductor Gauge 22 AWG, Insulation Material PE, Jacket Color Gray, Jacket Material PVC, Shielded Shielded, Shielding Material 100 Percent Aluminum/Polyester Flexfoil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Spool, Application Audio Systems, Computer Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 0
Additional Information
Country of Origin:
United States
Item:
Communication Cable
Cable Length:
500 ft
Number of Strands:
7
Conductor Gauge:
22 AWG
Fire Rating:
Commercial
Jacket Color:
Gray
Jacket Material:
PVC
Number of Conductors:
2
Outside Diameter:
0.2 in
Solid/Stranded:
Stranded
Shielding Material:
100% Aluminum/Polyester Flexfoil
Maximum Voltage Rating:
300 V
NEC Article and Type:
800 CM
Standards:
CE 2006/95/EC, CSA CMH, UL 70,000 BTU Vertical Tray Flame Test, CSA CMH Flame Test, RoHS Compliant, UL Style 2092, UL Style 2093, UL Style 2094, UL Style 2106, UL Style 2107, UL Style 2464
Length:
500 ft.
Solid / Stranded:
Stranded
NEC Article:
800, CM
Shielded / Unshielded:
Shielded
Jacket Material - Wire and Cable:
PVC
Spool Length:
500 ft
Suggested Voltage Rating - Data Cable:
300 V
Fire Rating - Data Cable:
Commercial
Package Type - Data Cable:
Spool
Application:
Audio Systems, Computer Systems, Control Systems
Shielded:
Shielded
Application - Communication Cable:
Audio Systems, Broadcast Systems, Computer Systems, Control Systems
Conductor Size:
22 AWG
Cable Sub-Category:
Multi-Conductor
Insulation Material:
PE
Item - Data Cable:
Communication Cable
Conductor Size - Data Cable:
22 AWG
Temp. Range:
-4 Degrees to 167 Degrees F
Nominal Outside Dia.:
0.167 in
Total Number of Conductors - Data Cable:
2 (0 Pair)
Package Type:
Spool
Product Type:
Communication Cable
Maximum Operating Temperature:
167 Degrees F
Minimum Operating Temperature:
-4 Degrees F
Number of Pairs:
0
Maximum Capacitance:
36.0 pf/ft
Package Quantity:
1
