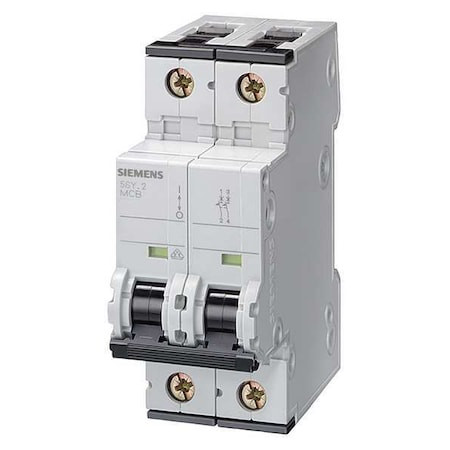

Circuit Breaker, 5SY4 Series, 16A, 2 Pole, 400V AC, 10kA at 400V AC, C Curve - 5SY42167

Circuit Breaker, 5SY4 Series, 16A, 2 Pole, 400V AC, 10kA at 400V AC, C Curve - 5SY42167

Siemens
SKU:
5SY42167
|
UPC:
754554875897
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
IEC Supplementary Protector, Amps 16 A, AC Voltage Rating 400V AC, Max. AIR Rating 10kA at 400V AC, Series 5SY4, Curve Type C, DC Voltage Rating 72V DC, Number of Poles 2, Phase 1, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style DIN Rail, Meets UL Type UL 1077, Terminal Connection Screw Clamp, Trip Type Thermal Magnetic, Application Industrial, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Length 3.62 in, Width 1.57 in, Depth 3.3 in
Additional Information
Country of Origin:
Germany
Item:
Circuit Breaker
Series:
5SY4
Amps:
16A
Number of Poles:
2
AC Voltage Rating:
400V AC
Phase:
1
Circuit Breaker Actuator:
Toggle
Circuit Breaker Mounting Style:
DIN Rail
Max. AIR Rating:
10kA at 400V AC
Trip Type:
Thermal Magnetic
Terminal Connection:
Screw Clamp
Frame Size:
2
Width:
1.57 in
Depth:
3.3 in
Height:
3.62 in
DC Voltage Rating:
72V DC
Curve Type:
C
Max. Wire Size:
4 AWG
Application:
Industrial
Standards:
EN60898, UL 1077 CSA C22.2 No. 235, UL File No. E 116385
Min. Wire Size:
14 AWG
Features:
Quick Assembly System
Housing Material:
Thermoplastic
Meets UL Type:
UL 1077
Package Quantity:
1
