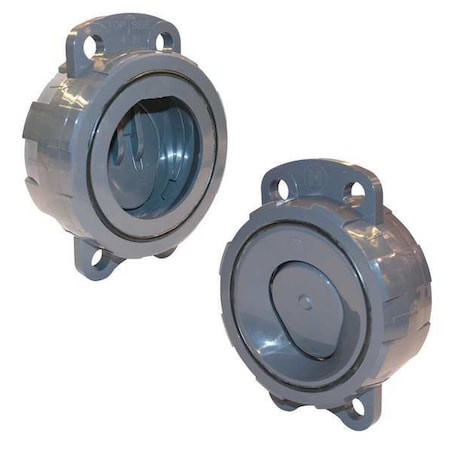

Check Valve, Wafer, 6", PVC/FPM - WCV1600V

Check Valve, Wafer, 6", PVC/FPM - WCV1600V

Hayward Flow Control
SKU:
WCV1600V
|
UPC:
610377188739
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves PVC, Pipe or Tube Size 6 in, Connection Type Flange x Flange, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 1,000 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
6";Hex Size=Not Applicable"
Connection Type:
Flanged
Body Material:
PVC
Cracking Pressure - Check Valves:
1.0 psi
Size:
6";Connection Type - Check Valves=Flange x Flange"
Material of Construction:
PVC
Item:
Wafer Check Valve
Flow:
1000 gpm
Seat Material:
FPM
Mechanism and Body Design:
Inline Wafer
Width:
8 5/8 in
Min. Temp. - Valves:
40 Degrees F
Mounting Orientation - Check Valves:
Horizontal, Vertical
Flow Design:
Single
Flow - Valves:
1,000 gpm
Application - Valves:
Process Piping
Max. Water Pressure:
150 psi @ 70 Degrees F
Max. Temp.:
140 Degrees F
Length:
3 in
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Item - Check Valves:
Check Valve
Seal Material - Check Valves:
FPM
Body Material - Valves:
PVC
Overall Height:
11 1/8 in
Cracking Pressure:
1 psi
Seal Material:
FPM
Sub-Category:
PVC
Max. Steam Pressure - Valves:
Not Rated
Max. Temp. - Valves:
140 Degrees F
Mounting Position:
Vertical or Horizontal
Pipe or Tube Size - Check Valves:
6 in
Seat Material - Check Valves:
FPM
Full Flow - Valves:
Yes
Spring Material:
Not Applicable
Standards:
ASTM D1784, ISO 9001
Overall Length:
3 in
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
6 in
Seal:
EPDM
Check Mechanism:
Swing
Operating Temperature - Maximum:
140 Degrees F
Maximum Pressure - Operating:
150 psi
Operating Temperature - Minimum:
70 Degrees F
Average Surface Roughness (Ra):
Not Applicable
ANSI Flange Class:
Class 150
Connection Gender - Side 2:
Not Applicable
Connection Size - Side 2:
6 in
Connection Size - Side 1:
6 in
Connection Gender - Side 1:
Not Applicable
3-A Standard Compliance:
Not Rated
Valve Body Style:
Inline
Coefficient of Volume (Cv):
848
For Media:
Water
Connection Type - Side 1:
Wafer
Silent Check:
Standard
Maximum Pressure - Steam:
Not Rated
Check Mechanism Material:
PVC
Vacuum Service Rating:
Not Rated
Nominal Valve Size:
6 in
Connection Type - Side 2:
Wafer
Manufacturer Warranty:
3 yr
Includes Counterweight:
No Counterweight
Package Quantity:
1
