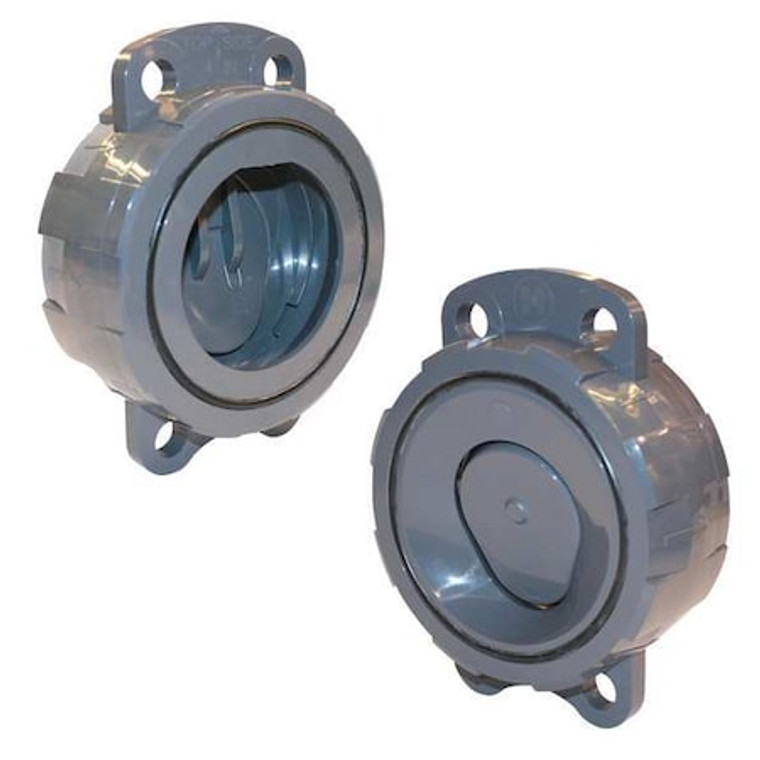

Check Valve, Wafer, 6", CPVC/FPM - WCV2600V

Check Valve, Wafer, 6", CPVC/FPM - WCV2600V

Hayward Flow Control
SKU:
WCV2600V
|
UPC:
610377189927
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves CPVC, Pipe or Tube Size 6 in, Connection Type Flange x Flange, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 190 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 1,000 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
6";Hex Size=Not Applicable"
Connection Type:
Flanged
Body Material:
CPVC
Cracking Pressure - Check Valves:
1.0 psi
Mounting Orientation - Check Valves:
Horizontal, Vertical
Pipe or Tube Size - Check Valves:
6 in
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Item:
Wafer Check Valve
Cracking Pressure:
1 psi
Seal Material:
FPM
Application - Valves:
Process Piping
Body Material - Valves:
CPVC
Size:
6";Max. Pressure=150 psi @ 70 Degrees F"
Seat Material - Check Valves:
FPM
Length:
3 in
Item - Check Valves:
Check Valve
Min. Temp. - Valves:
40 Degrees F
Max. Temp. - Valves:
190 Degrees F
Overall Height:
11 1/8 in
Flow Design:
Single
Full Flow - Valves:
Yes
Width:
8 5/8 in
Max. Temp.:
190 Degrees F
Sub-Category:
CPVC
Seal Material - Check Valves:
FPM
Material of Construction:
CPVC
Max. Steam Pressure - Valves:
Not Rated
Max. Water Pressure:
150 psi @ 70 Degrees F
Seat Material:
FPM
Mechanism and Body Design:
Inline Wafer
Flow:
1000 gpm
Mounting Position:
Vertical or Horizontal
Connection Type - Check Valves:
Flange x Flange
Flow - Valves:
1,000 gpm
Spring Material:
Not Applicable
Standards:
ASTM D1784, ISO 9001
Overall Length:
3 in
Pipe or Tube Size:
6 in
Mounting Orientation:
Horizontal, Vertical
Seal:
EPDM
Connection Type - Side 1:
Wafer
Silent Check:
Standard
Valve Body Style:
Inline
3-A Standard Compliance:
Not Rated
Operating Temperature - Maximum:
190 Degrees F
Connection Gender - Side 2:
Not Applicable
Average Surface Roughness (Ra):
Not Applicable
Connection Type - Side 2:
Wafer
Connection Size - Side 2:
6 in
Coefficient of Volume (Cv):
848
Check Mechanism Material:
CPVC
Maximum Pressure - Steam:
Not Rated
For Media:
Water
Nominal Valve Size:
6 in
Operating Temperature - Minimum:
70 Degrees F
Vacuum Service Rating:
Not Rated
Includes Counterweight:
No Counterweight
Connection Gender - Side 1:
Not Applicable
Connection Size - Side 1:
6 in
Manufacturer Warranty:
3 yr
Check Mechanism:
Swing
ANSI Flange Class:
Class 150
Maximum Pressure - Operating:
150 psi
Package Quantity:
1
