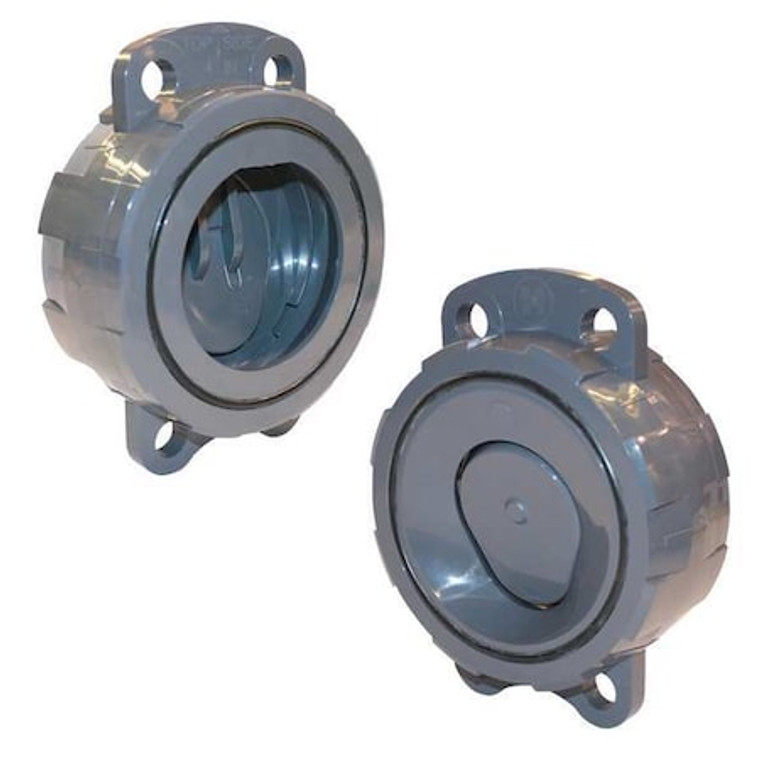

Check Valve, Wafer, 4", PVC/FPM, with Hastelloy Spring - WCV1400VH

Check Valve, Wafer, 4", PVC/FPM, with Hastelloy Spring - WCV1400VH

Hayward Flow Control
SKU:
WCV1400VH
|
UPC:
610377188647
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves PVC, Pipe or Tube Size 4 in, Connection Type Flange x Flange, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Spring Material Hastelloy, Flow - Valves 315 gpm
Additional Information
Country of Origin:
United States
Pipe Size:
4";Hex Size=Not Applicable"
Connection Type:
Flanged
Body Material:
PVC
Item - Check Valves:
Check Valve
Material of Construction:
PVC
Cracking Pressure:
1 psi
Mechanism and Body Design:
Inline Wafer
Body Material - Valves:
PVC
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Spring Material - Check Valves:
Hastelloy
Mounting Position:
Vertical or Horizontal
Max. Water Pressure:
150 psi @ 70 Degrees F
Seat Material - Check Valves:
FPM
Flow Design:
Single
Application - Valves:
Process Piping
Overall Height:
9 in
Max. Temp. - Valves:
140 Degrees F
Seat Material:
FPM
Flow - Valves:
315 gpm
Mounting Orientation - Check Valves:
Horizontal, Vertical
Length:
2 29/32 in
Sub-Category:
PVC
Spring Material:
Hastelloy
Seal Material - Check Valves:
FPM
Item:
Wafer Check Valve
Max. Steam Pressure - Valves:
Not Rated
Max. Pressure:
150 psi @ 70 Degrees F
Width:
6 3/4 in
Size:
4";Pipe or Tube Size - Check Valves=4 in"
Full Flow - Valves:
Yes
Min. Temp. - Valves:
40 Degrees F
Connection Type - Check Valves:
Flange x Flange
Cracking Pressure - Check Valves:
1.0 psi
Flow:
315 gpm
Seal Material:
FPM
Max. Temp.:
140 Degrees F
Standards:
ASTM D1784, ISO 9001
Overall Length:
2.91 in
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
4 in
Seal:
FPM
Connection Gender - Side 2:
Not Applicable
Operating Temperature - Maximum:
140 Degrees F
Connection Size - Side 2:
4 in
Connection Gender - Side 1:
Not Applicable
For Media:
Water
Maximum Pressure - Steam:
Not Rated
Coefficient of Volume (Cv):
346
Connection Type - Side 2:
Wafer
Vacuum Service Rating:
Not Rated
Nominal Valve Size:
4 in
Check Mechanism:
Swing
Average Surface Roughness (Ra):
Not Applicable
Valve Body Style:
Inline
Connection Size - Side 1:
4 in
Check Mechanism Material:
PVC
Connection Type - Side 1:
Wafer
Silent Check:
Standard
Operating Temperature - Minimum:
70 Degrees F
Includes Counterweight:
No Counterweight
3-A Standard Compliance:
Not Rated
ANSI Flange Class:
Class 150
Maximum Pressure - Operating:
150 psi
Manufacturer Warranty:
3 yr
Package Quantity:
1
