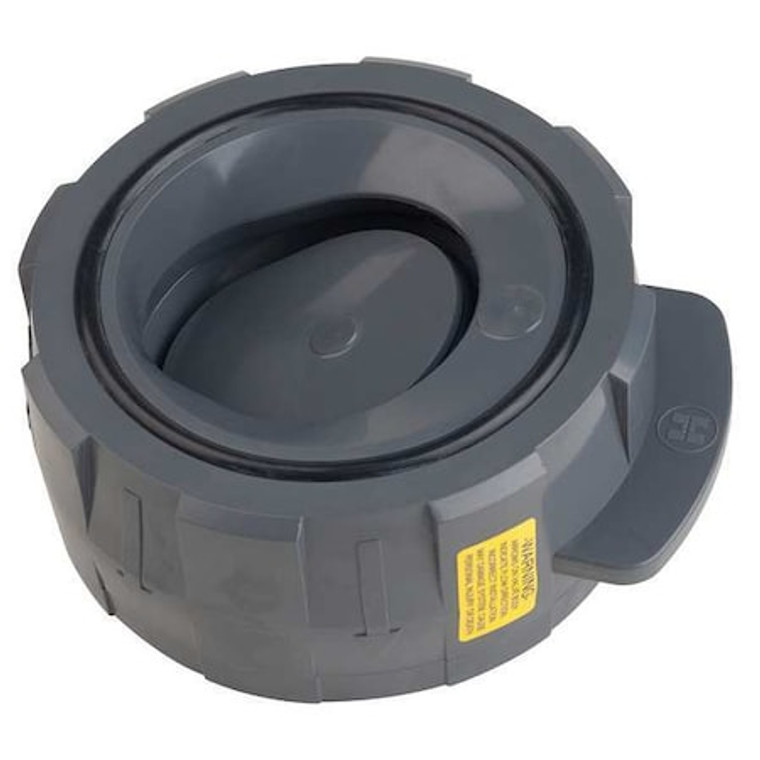

Check Valve, Wafer, 3", PVC/EPDM, with SS Spring - WCV1300ES

Check Valve, Wafer, 3", PVC/EPDM, with SS Spring - WCV1300ES

Hayward Flow Control
SKU:
WCV1300ES
|
UPC:
610377188562
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves PVC, Pipe or Tube Size 3 in, Connection Type Flange x Flange, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Spring Material Stainless Steel
Additional Information
Country of Origin:
United States
Pipe Size:
3";Hex Size=Not Applicable"
Connection Type:
Flanged
Body Material:
PVC
Full Flow - Valves:
Yes
Pipe or Tube Size - Check Valves:
3 in
Item:
Wafer Check Valve
Sub-Category:
PVC
Flow:
220 gpm
Flow - Valves:
220 gpm
Mechanism and Body Design:
Inline Wafer
Mounting Orientation - Check Valves:
Horizontal, Vertical
Size:
3";Spring Material=Stainless Steel"
Material of Construction:
PVC
Max. Temp. - Valves:
140 Degrees F
Max. Water Pressure:
150 psi @ 70 Degrees F
Max. Temp.:
140 Degrees F
Max. Steam Pressure - Valves:
Not Rated
Mounting Position:
Vertical or Horizontal
Cracking Pressure - Check Valves:
1.0 psi
Application - Valves:
General Purpose
Spring Material - Check Valves:
Stainless Steel
Cracking Pressure:
1 psi
Width:
5 1/4 in
Seat Material - Check Valves:
EPDM
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Seat Material:
EPDM
Min. Temp. - Valves:
40 Degrees F
Body Material - Valves:
PVC
Length:
2 13/32 in
Item - Check Valves:
Check Valve
Seal Material - Check Valves:
EPDM
Overall Height:
6 1/2 in
Flow Design:
Single
Seal Material:
EPDM
Connection Type - Check Valves:
Flange x Flange
Standards:
ASTM D1784, ISO 9001
Overall Length:
2.41 in
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
3 in
Seal:
EPDM
For Media:
Water
Nominal Valve Size:
3 in
Operating Temperature - Maximum:
140 Degrees F
Check Mechanism:
Swing
Operating Temperature - Minimum:
70 Degrees F
Includes Counterweight:
No Counterweight
3-A Standard Compliance:
Not Rated
Coefficient of Volume (Cv):
87
Valve Body Style:
Inline
Connection Gender - Side 2:
Not Applicable
Connection Type - Side 1:
Wafer
Connection Size - Side 2:
3 in
Maximum Pressure - Steam:
Not Rated
Vacuum Service Rating:
Not Rated
Silent Check:
Standard
ANSI Flange Class:
Class 150
Average Surface Roughness (Ra):
Not Applicable
Connection Gender - Side 1:
Not Applicable
Check Mechanism Material:
PVC
Connection Type - Side 2:
Wafer
Manufacturer Warranty:
3 yr
Maximum Pressure - Operating:
150 psi
Connection Size - Side 1:
3 in
Package Quantity:
1
