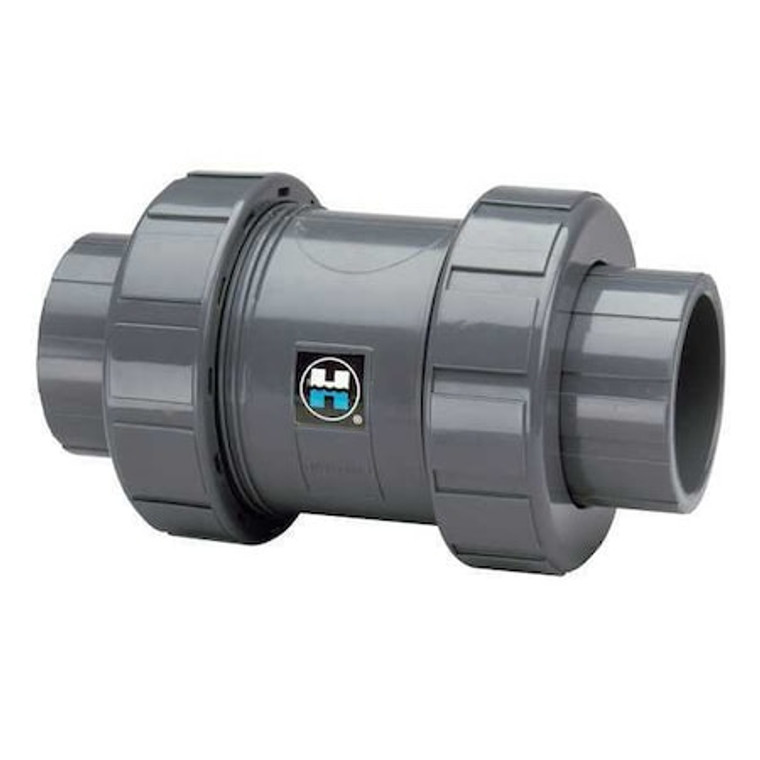

Check Valve, True Union, Ball, 4", PVC/EPDM, Threaded - TC1400TE

Check Valve, True Union, Ball, 4", PVC/EPDM, Threaded - TC1400TE

Hayward Flow Control
SKU:
TC1400TE
|
UPC:
610377166690
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline True Union, Body Material - Valves PVC, Pipe or Tube Size 4 in, Connection Type FNPT x FNPT, Cracking Pressure 3 psi, Mounting Orientation Vertical, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Flow - Valves 275 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
4";Hex Size=Not Applicable"
Connection Type:
Threaded
Connection:
FNPT
Body Material:
PVC
Body Material - Valves:
PVC
Mounting Orientation - Check Valves:
Vertical
Seat Material - Check Valves:
EPDM
Width:
8 9/16 in
Application - Valves:
Process Piping
Connection Type - Check Valves:
FNPT x FNPT
Length:
13 in
Seat Material:
EPDM
Max. Pressure:
150 psi @ 70 Degrees F
Item:
Check Valve
Min. Temp. - Valves:
40 Degrees F
Sub-Category:
PVC
Flow - Valves:
275 gpm
Max. Temp. - Valves:
140 Degrees F
Full Flow - Valves:
Yes
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Standards:
NSF 61
Pipe or Tube Size - Check Valves:
4 in
Mounting Position:
Vertical (Flow Up)
Item - Check Valves:
Check Valve
Flow:
275 gpm
Max. Steam Pressure - Valves:
Not Rated
Max. Temp.:
140 Degrees F
Seal Material:
EPDM
Material of Construction:
PVC
Cracking Pressure:
3 psi
Flow Design:
Single
Overall Height:
8 9/16 in
Seal Material - Check Valves:
EPDM
Mechanism and Body Design:
Inline True Union
Cracking Pressure - Check Valves:
3.0 psi
Size:
4";Spring Material=Not Applicable"
Overall Length:
12.94 in
Pipe or Tube Size:
4 in
Mounting Orientation:
Horizontal, Vertical
Seal:
FPM
Connection Gender - Side 1:
Female
Connection Type - Side 2:
NPT
Connection Gender - Side 2:
Female
Average Surface Roughness (Ra):
Not Applicable
Operating Temperature - Minimum:
34 Degrees F
ANSI Flange Class:
Not Applicable
Coefficient of Volume (Cv):
400
Includes Counterweight:
No Counterweight
Check Mechanism Material:
PVC
Maximum Pressure - Operating:
150 psi
NSF Certifications for Food and Drinking Water:
NSF 61
Valve Body Style:
Inline
Connection Size - Side 1:
4 in
Vacuum Service Rating:
Not Rated
Operating Temperature - Maximum:
140 Degrees F
Connection Size - Side 2:
4 in
For Media:
Water
Nominal Valve Size:
4 in
Manufacturer Warranty:
3 yr
Maximum Pressure - Steam:
Not Rated
Check Mechanism:
Ball
Silent Check:
Standard
Connection Type - Side 1:
NPT
3-A Standard Compliance:
Not Rated
Package Quantity:
1
