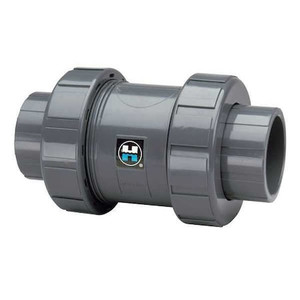

Check Valve, True Union, Ball, 2-1/2", PVC/FPM, Socket - TC1250S

Check Valve, True Union, Ball, 2-1/2", PVC/FPM, Socket - TC1250S

Hayward Flow Control
SKU:
TC1250S
|
UPC:
610377166515
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline True Union, Body Material - Valves PVC, Pipe or Tube Size 2 1/2 in, Connection Type Socket x Socket, Cracking Pressure 3 psi, Mounting Orientation Vertical, Seal Material Viton, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material Viton, Flow - Valves 100 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
2 1/2";Hex Size=Not Applicable"
Connection Type:
socket
Connection:
SKT
Body Material:
PVC
Mounting Position:
Vertical (Flow Up)
Min. Temp. - Valves:
40 Degrees F
Max. Pressure:
150 psi @ 70 Degrees F
Overall Height:
6-9/16";Mechanism and Body Design=Inline True Union"
Flow:
100 gpm
Material of Construction:
PVC
Pipe or Tube Size - Check Valves:
2-1/2";Body Material - Valves=PVC"
Mounting Orientation - Check Valves:
Vertical
Cracking Pressure - Check Valves:
3.000 psi
Length:
10.68";Cracking Pressure=3 psi"
Max. Steam Pressure - Valves:
Not Rated
Item - Check Valves:
Check Valve
Seal Material - Check Valves:
Viton
Flow - Valves:
100 gpm
Seat Material - Check Valves:
Viton
Seat Material:
Viton
Seal Material:
Viton
Size:
2 1/2";Standards=NSF 61"
Application - Valves:
General Purpose, Pumps
Connection Type - Check Valves:
Socket x Socket
Max. Temp. - Valves:
140 Degrees F
Max. Temp.:
140 Degrees F
Flow Design:
Single
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Full Flow - Valves:
Yes
Item:
Check Valve
Width:
6.56";Sub-Category=PVC"
Overall Length:
10.68 in
Spring Material:
Not Applicable
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
2 1/2 in
Seal:
FPM
Manufacturer Warranty:
3 yr
Maximum Pressure - Steam:
Not Rated
Connection Size - Side 1:
2 1/2 in
Average Surface Roughness (Ra):
Not Applicable
Silent Check:
Standard
Operating Temperature - Maximum:
140 Degrees F
3-A Standard Compliance:
Not Rated
Operating Temperature - Minimum:
34 Degrees F
Check Mechanism:
Ball
Maximum Pressure - Operating:
150 psi
Nominal Valve Size:
2 1/2 in
ANSI Flange Class:
Not Applicable
Connection Gender - Side 1:
Female
Connection Type - Side 1:
Socket
NSF Certifications for Food and Drinking Water:
NSF 61
Connection Size - Side 2:
2 1/2 in
Valve Body Style:
Inline
Connection Type - Side 2:
Socket
For Media:
Water
Includes Counterweight:
No Counterweight
Check Mechanism Material:
PVC
Coefficient of Volume (Cv):
170
Connection Gender - Side 2:
Female
Vacuum Service Rating:
Not Rated
Package Quantity:
1
