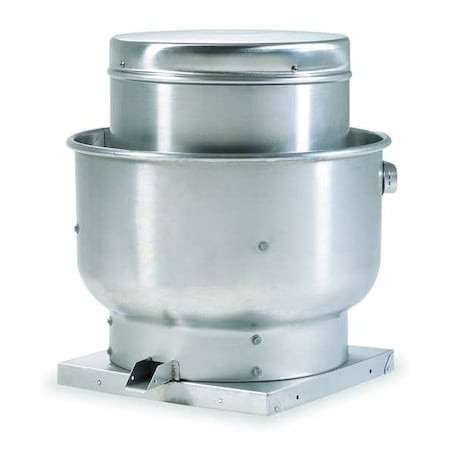

Centrifugal Upblast Roof Exhaust Fan W/ Drive Pack, 1468 cfm, 1/4 hp, 115V, 11 in Wheel Dia - 4HZ41

Centrifugal Upblast Roof Exhaust Fan W/ Drive Pack, 1468 cfm, 1/4 hp, 115V, 11 in Wheel Dia - 4HZ41

Dayton
SKU:
4HZ41
|
UPC:
190735326206
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 22 in, Base Length 22 in, Base Shape Square, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 1,468 cfm, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/4 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
Additional Information
Country of Origin:
United States
Item - Roof Ventilators:
Upblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Direct Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
1
Voltage - Roof Ventilators:
115V AC
Motor HP - Roof Ventilators:
1/4 hp
Base Size - Roof Ventilators:
22 in x 22 in
CFM @ 0.000-In. SP:
1468
Sones @ 0.500-In. SP @ 5 Ft.:
11.7
Shaft Dia. Wheel End:
1/2 in
Sones @ 0.125-In. SP @ 5 Ft.:
12.9
CFM @ 0.250-In. SP:
1373
CFM @ 0.625-In. SP:
1195
Recommended 8 In. Fixed Curb Item No.:
4HX39
Speed Controllable:
Yes
Dimension D:
17 3/8 in
CFM @ 0.750-In. SP:
1129
Motor HP:
1/4
Base Width:
22 in
CFM @ 0.125-In. SP:
1422
Adj. 12 3/8H Roof Curb Stock No.:
2ZV82"
Max. Inlet Temp.:
300 Degrees F
CFM @ 0.875-In. SP:
1062
CFM @ 0.375-In. SP:
1315
Assembled/Unassembled:
Assembled
Hz:
60
Adj. UL 762 Kitchen Roof Curb Stock No.:
4HX61
Drive Package Included:
Yes
Dimension C:
22 in
Wheel Material:
Aluminum
Max. Operating Amps:
5.0
Base Square Size - Roof Ventilators:
22 x 22""
Max. BHP:
0.29
Phase:
1
Recommended Damper Stock No.:
4HX65
Includes:
NEMA 1 Junction Box
Drive Type:
Direct Drive
Recommended Damper Size (In.):
15 x 15
CFM @ 1.000-In. SP:
970
Wheel Dia.:
11 in
Housing Material:
Aluminum
RPM:
1725
Dimension B:
24 7/8 in
Item:
Centrifugal Upblast Roof Exhaust Fan
Overall Height:
30 in
Speed Control:
48C172
Fixed UL 762 Kitchen Roof Curb Stock No.:
4HX55
Base Length:
22 in
Sones @ 0.250-In. SP @ 5 Ft.:
12.5
Base Height:
1.8 in
Dimension A:
22 in
Motor Voltage:
115
Standards:
AMCA Sound and Air, UL/cUL 762
Mounting Location:
Roof
Adj. 6 3/8H Roof Curb Stock No.:
4c453"
Requires:
Roof Curb for New Installation
CFM @ 0.500-In. SP:
1255
Recommended 12 In. Fixed Curb Item No.:
4HX47
Overall Dia.:
24 7/8 in
Features:
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design
Overall Width:
24 7/8 in
Application:
Industrial and Commercial Buildings, Restaurants, Schools
Exhaust Airflow @ 0.000 in SP:
1,468 cfm
Nameplate Voltage:
115V AC
Maximum Static Pressure:
1 in wc
Maximum Ambient Temperature:
300 Degrees F
Resistance Properties:
Spark Resistant
Propeller Shaft Diameter:
1/2 in
Sound Level:
10.2 sones @ 0.875 in SP and 5 ft, 10.8 sones @ 0.750 in SP and 5 ft, 11.3 sones @ 0.625 in SP and 5 ft, 11.7 sones @ 0.500 in SP and 5 ft, 12.0 sones @ 0.375 in SP and 5 ft, 12.5 sones @ 0.250 in SP and 5 ft, 12.9 sones @ 0.125 in SP and 5 ft, 13.3
Motor Horsepower:
1/4 hp
Base Shape:
Square
Exhaust Airflow @ 0.125 in SP:
1,422 cfm
Exhaust Airflow @ 0.500 in SP:
1,255 cfm
Exhaust Airflow @ 0.375 in SP:
1,315 cfm
Assembly:
Assembled
Housing Width:
24.9 in
Spark Resistant Construction Type:
A
Airflow @ 0.000 in SP:
1,468 cfm
Wheel Type:
Backward Inclined
Maximum Fan Speed:
1,725 RPM
Mounting Orientation:
Vertical
Frequency:
60 Hz
Housing Length:
24.9 in
Cutout Size:
17.5 in L x 17.5 in W
Includes Drive Package:
Yes
Motor Location:
Out of Airstream
Overall Depth:
23 3/4 in
Includes Motor:
Yes
For High-Static Pressure Applications:
No
Exhaust Airflow @ 0.250 in SP:
1,373 cfm
Motor Enclosure:
Open Dripproof
Overall Diameter:
24 7/8 in
Motor Speed:
1,725 RPM
Cutout Length:
17.5 in
High-Efficiency Motor:
No
Current:
3.6 A
Safety Features:
Fully Rolled Windband
Electrical Connection:
Power Cord
Mount Type:
Roof Curb
Maximum Inlet Air Temperature:
300 Degrees F
Compatible Curb Manufacturer Part Number:
3AZK1 to 3AZK9, 3AZL1 to 3AZL3
Brake Horsepower:
29/100 hp
Damper Size:
15 x 15 in
Compatible Speed Control:
48C172
For Air Type:
Kitchen Air
Wheel Diameter:
11 in
Housing Material Fabrication:
Spun
Base Diameter:
Not Applicable
Package Quantity:
1
