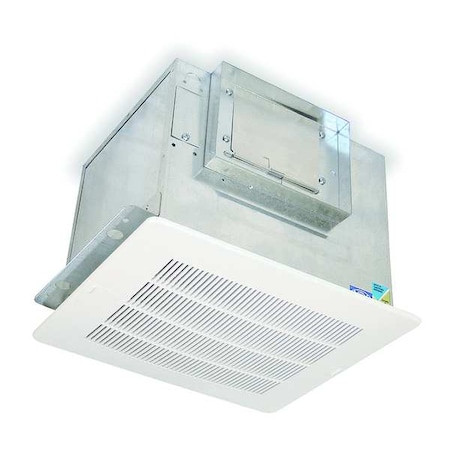

Ceiling Ventilator, 557 CFM, 115 V - 5AE75
Ceiling Ventilator, Discharge Direction Horizontal and Vertical, Duct Shape Rectangular, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Backdraft Damper, Mounting Brackets, Mounting Location Ceiling, Maximum Airflow 557 cfm, Exhaust Airflow @ 0.100 in SP 512 cfm, Exhaust Airflow @ 0.000 in SP 557 cfm, Maximum Noise Level 5 sones, Noise Level @ 0.100 in SP @ 5 ft 4.5 sones, Maximum Coverage Area 400 sq ft, Number of Speeds 1, Overall Depth 18 in
- Country of Origin:
- United States
- Item:
- Ceiling Ventilator
- Housing Length:
- 18 in
- Sones @ 0.000-In. SP @ 5 Ft.:
- 4.8
- Max. Inlet Temp.:
- 104 Degrees F
- Discharge Height:
- 8 in
- Motor Enclosure:
- Open
- Singlewide / Doublewide:
- Singlewide
- For Use With:
- General Ventilation Applications
- Motor Insulation:
- Class B
- Grille Length:
- 19 1/2 in
- Grille Material:
- Polystyrene
- Recommended Accessories:
- 48C172, 6WZP3
- CFM @ 0.250-In. SP:
- 439
- Watts:
- 224 W
- Dimension D:
- 8 in
- Housing Height:
- 14 1/2 in
- Mounting Position:
- Ceiling, Horizontal or Vertical
- Hz:
- 60
- Dimension B:
- 14 3/8 in
- Wheel Material:
- Polypropylene
- Housing Material:
- Steel
- Dimension A:
- 18 in
- Sones @ 0.125-In. SP @ 5 Ft.:
- 4.5
- Grille Width:
- 17 in
- Insulated:
- Yes
- Phase:
- 1
- CFM @ 0.125-In. SP:
- 501
- Voltage:
- 115V AC
- CFM @ 0.500-In. SP:
- 325
- CFM @ 0.000-In. SP:
- 557
- Dimension E:
- 8 in
- Motor Type:
- Shaded Pole
- Speed Control:
- 48C172
- Standards:
- AMCA, cUL Listed, UL Listed
- Grille Color:
- White
- Includes:
- Backdraft Damper, Mounting Brackets
- Motor RPM:
- 1070
- Full Load Amps:
- 3.30
- Discharge Width:
- 8 in
- Number of Speeds:
- 1
- CFM @ 0.100-In. SP:
- 512
- Sones @ 0.100-In. SP @ 5 Ft.:
- 4.5
- CFM @ 0.375-In. SP:
- 392
- Sones @ 0.250-In. SP @ 5 Ft.:
- 4.4
- Housing Width:
- 14 3/8 in
- Inlet Width:
- 8 in
- Inlet Height:
- 8 in
- Overall Height:
- 14 1/2 in
- Overall Width:
- 14 3/8 in
- Discharge Direction:
- Horizontal and Vertical
- Maximum Inlet Temperature:
- 104 Degrees F
- Profile Height Family:
- High
- Noise Level @ 0.000 in SP @ 5 ft:
- 5 sones
- Motor Speed:
- 1,070 RPM
- Maximum Airflow:
- 557 cfm
- Full Load Current:
- 3.3 A
- Duct Height:
- 8 in
- Nameplate Voltage:
- 115V AC
- Wattage:
- 224 W
- Includes Grill:
- Yes
- Maximum Noise Level:
- 5 sones
- Noise Level @ 0.100 in SP @ 5 ft:
- 4.5 sones
- Exhaust Airflow @ 0.250 in SP:
- 439 cfm
- For Cut-Out Length:
- 18 1/4 in
- Profile Width Family:
- Single-Wide
- Frequency:
- 60 Hz
- Exhaust Airflow @ 0.000 in SP:
- 557 cfm
- Exhaust Airflow @ 0.100 in SP:
- 512 cfm
- Blower Wheel Material:
- Polypropylene
- Overall Depth:
- 18 in
- For Cut-Out Width:
- 14 5/8 in
- Housing Finish:
- Galvanized
- Noise Level @ 0.125 in SP @ 5 ft:
- 4.5 sones
- Maximum Coverage Area:
- 400 sq ft
- Lighted:
- Without Light
- Blower Wheel Curve:
- Forward
- Duct Width:
- 8 in
- Duct Shape:
- Rectangular
- Sensor Type:
- None
- Vent Design:
- Ducted
- Mounting Orientation:
- Horizontal, Vertical
- Heater:
- Without Heater
- Noise Level @ 0.250 in SP @ 5 ft:
- 4.5 sones
- Package Quantity:
- 1
-
-
