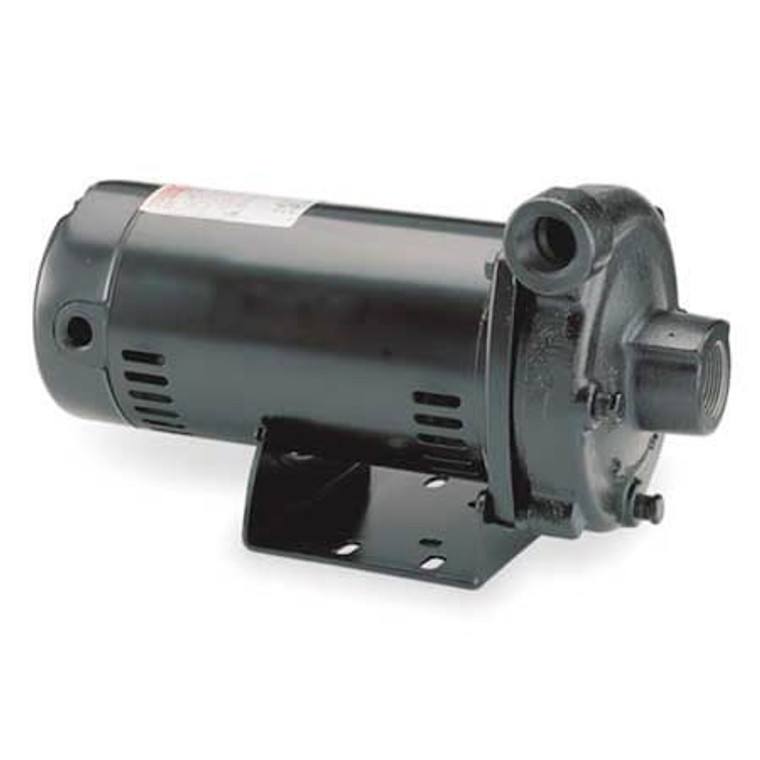

Cast Iron 1-1/2 HP Centrifugal Pump 115/230V - 4RU79

Cast Iron 1-1/2 HP Centrifugal Pump 115/230V - 4RU79

Dayton
SKU:
4RU79
|
UPC:
190735333860
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 1 1/2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 66 gpm, Flow Rate @ 60 ft of Head (Maximum) 57 gpm, Flow Rate @ 80 ft of Head (Maximum) 48 gpm, Maximum Feet of Head 118 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 70 gpm, Flow Rate @ 20 ft of Head (Maximum) 70 gpm
Additional Information
Country of Origin:
United States
HP - Pumps:
1 1/2 hp
Voltage - Pumps:
120/240V AC
Phase - Pumps:
1
Housing Material - Pumps:
Cast Iron
Inlet Size - Pumps:
1-1/4 in NPT
Outlet Size - Pumps:
1 in NPT
Max. Head:
118 ft
Max. Pressure - Pumps:
125 psi
Motor Enclosure - Pumps:
Open Dripproof
Phase:
Single
HP:
1-1/2
GPM of Water @ 70 Ft. of Head:
52
GPM of Water @ 110 Ft. of Head:
23
Max. Pressure:
125 psi
Impeller Material:
Noryl
Max. Specific Gravity:
1.0
Motor RPM:
3,450 RPM
Bearing Type:
Ball
GPM of Water @ 40 Ft. of Head:
66
Max. Case Pressure:
100 psi
Item:
Centrifugal Pump
GPM of Water @ 90 Ft. of Head:
41
Amps:
19.9/9.95
Max. Liquid Temp.:
140 Degrees F
GPM of Water @ 30 Ft. of Head:
68
Item - Straight Centrifugal Pumps:
Straight Centrifugal High Head Pump
Inlet:
1-1/4";Outlet=1""
Max. GPM @ Head:
70 @ 20 ft
Voltage:
115/230VAC
Seal Material:
316 Stainless Steel, Buna-N, Carbon, Ceramic
Impeller Type:
Closed
Housing Material:
Cast iron
Best Efficiency Range GPM @ Head:
30 to 56 gpm @ 112 to 62 ft
Hz:
60
Frame:
48Y
Width:
7 13/16 in
Min. GPM @ Head:
23 @ 110 ft
Best Efficiency GPM @ Head:
45 @ 85 ft
Height:
8 5/8 in
GPM of Water @ 60 Ft. of Head:
57
GPM of Water @ 80 Ft. of Head:
48
Manufacturers Warranty Length:
1 yr
Wetted Materials:
Stainless Steel, Carbon, Cast Iron, Noryl, Ceramic, Buna-N
Motor Enclosure:
Open Dripproof (ODP)
Length:
13 3/4 in
GPM of Water @ 100 Ft. of Head:
35
Port Rotation:
4 Positions
GPM of Water @ 50 Ft. of Head:
61
GPM of Water @ 20 Ft. of Head:
70
Overall Height:
8.6 in
Overall Width:
7.8 in
Overall Length:
13.7 in
Flow Rate @ 80 ft of Head (Maximum):
48 gpm
Wetted Material:
Buna-N, Carbon, Cast Iron, Ceramic, Noryl, Stainless Steel
Discharge Rotation:
90 Degrees Increments
Flow Rate @ 50 ft of Head (Maximum):
Not Applicable
Shaft Material:
Stainless Steel
Specific Gravity (Maximum):
1
Compatible Discharge Pipe Size:
1 in
Shut Off Pressure (Maximum):
125 psi
Best Efficiency Flow:
45 gpm
Flow Rate @ 200 ft of Head (Maximum):
Not Applicable
Discharge Type:
NPT
Flow Rate @ 180 ft of Head (Maximum):
Not Applicable
Flow Rate @ 160 ft of Head (Maximum):
Not Applicable
Flow Rate @ 40 ft of Head (Maximum):
66 gpm
Impeller Design:
Closed
Best Efficiency Head:
85 ft
Frequency:
60 Hz
Flow Rate @ 1 ft of Head (Maximum):
Not Applicable
Flow Rate @ 90 ft of Head (Maximum):
Not Applicable
Priming:
Manual
Flow Rate @ 20 ft of Head (Maximum):
70 gpm
Maximum RPM:
3,450 RPM
Flow Rate @ 220 ft of Head (Maximum):
Not Applicable
Suction Lift (Maximum):
25 ft
Maximum Media Temperature:
140 Degrees F
Flow Rate @ 120 ft of Head (Maximum):
Not Applicable
Seal Type:
Type 21
Flow Rate @ 5 ft of Head (Maximum):
Not Applicable
Flow Rate @ 60 ft of Head (Maximum):
57 gpm
Compatible Intake Pipe Size:
1 1/4 in
Flow Rate @ 30 ft of Head (Maximum):
Not Applicable
For Use With Potable Systems:
No
Intake Type:
NPT
Flow Rate @ 240 ft of Head (Maximum):
Not Applicable
Flow Rate @ 300 ft of Head (Maximum):
Not Applicable
Maximum Feet of Head:
118 ft
Flow Rate @ 140 ft of Head (Maximum):
Not Applicable
Maximum Flow Rate:
70 gpm
Horsepower:
1 1/2 hp
Flow Rate @ 10 ft of Head (Maximum):
Not Applicable
Flow Rate @ 280 ft of Head (Maximum):
Not Applicable
Flow Rate @ 70 ft of Head (Maximum):
Not Applicable
Flow Rate @ 15 ft of Head (Maximum):
Not Applicable
Duty Cycle:
Continuous
Motor Frame Designation:
48Y
Nameplate Voltage:
115/230V AC
Pump Housing Material:
Cast Iron
Flow Rate @ 100 ft of Head (Maximum):
35 gpm
Flow Rate @ 260 ft of Head (Maximum):
Not Applicable
Package Quantity:
1
