Carbon Steel Electrical Enclosures, 16 in H, 11 in D, 24 in W, NEMA 12, Screw On - WC16C24

Carbon Steel Electrical Enclosures, 16 in H, 11 in D, 24 in W, NEMA 12, Screw On - WC16C24

Wiegmann
SKU:
WC16C24
|
UPC:
786725441501
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

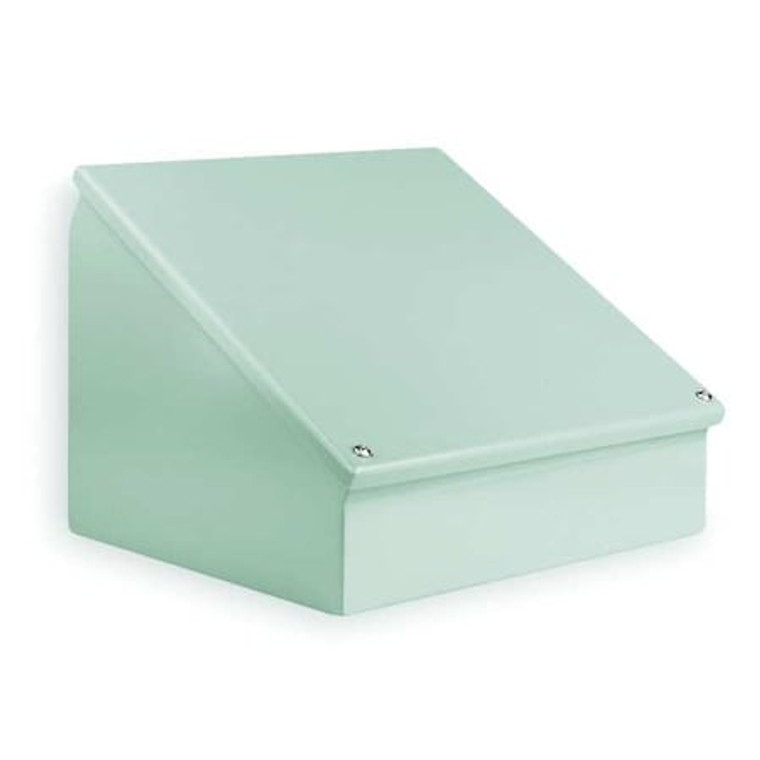

Sloped Top Enclosure, Metallic, No Knockouts, NEMA Rating 12, 13, Hinged Enclosure Cover Type, Height 16 In., Width 24 In., Depth 11 In., Material Carbon Steel, Enclosure Cover Features Captivated Cover Screws, Metal Gauge 14, Color Gray, Finish ANSI 61 Gray Polyester Powder, Neoprene Gasket, Series Consolets, Pedestal Mounting, Usable Opening Depth 3.5 In., Standards UL, CSA, NEMA, Includes Captivated Cover Screws
Additional Information
Country of Origin:
United States
Item:
Electrical Enclosures
Nominal Width:
24 in
Nominal Height:
16 in
Nominal Depth:
11 in
Enclosure NEMA Rating:
NEMA 12
Material of Enclosure:
Carbon Steel
Closure Method:
Captive Screws
Enclosure Cover Type:
Screw On
Knockouts:
No
Metallic / Non-Metallic:
Metallic
Color:
Gray
Finish:
Polyester Powder
Mounting:
Pedestal
Solid / Clear Cover:
Solid
Enclosure Cover Features:
Captivated Cover Screws
Standards:
CSA Certified, cULus, EU RoHS Compliant, UL Listed
Usable Opening Depth:
10.88 in
Metal Gauge:
14 ga
Series:
WC-C
Material:
Carbon Steel
Gasket:
Neoprene
Includes:
Captive Cover Screws
Enclosure Material:
Steel
Cover Type:
Screw On
Features:
Fabricated from carbon steel; Seams are continuously welded and ground smooth; Grounding provisions
Application:
Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degr
Includes Knockouts:
Knockouts Not Included
NEMA Enclosure Rating:
12, 13
Gasket Material:
Oil Resistant Neoprene
Package Quantity:
1
