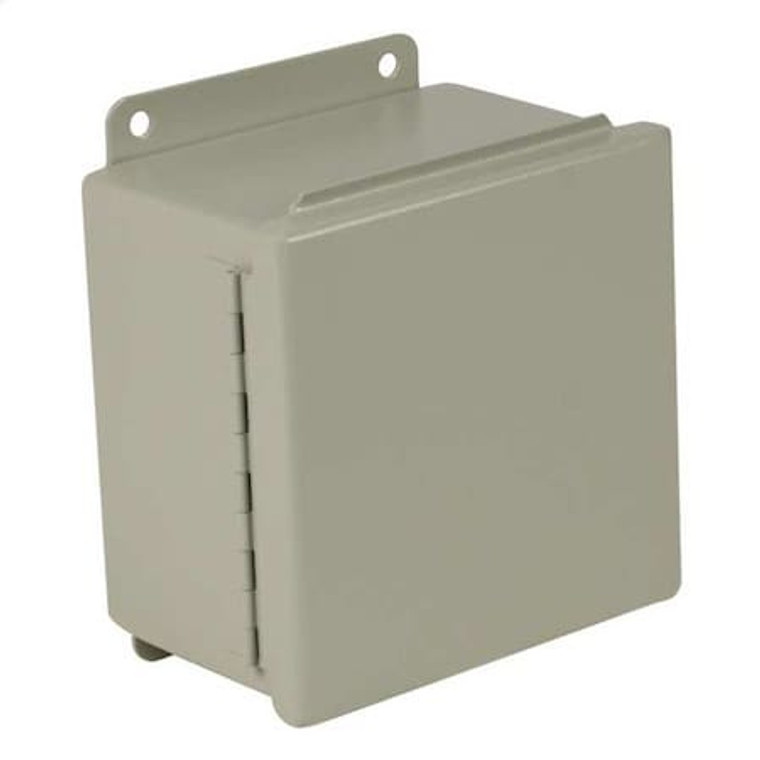

Carbon Steel Electrical Enclosures, 12 in H, 6 in D, 12 in W, NEMA 12, Hinged - B121206CH

Carbon Steel Electrical Enclosures, 12 in H, 6 in D, 12 in W, NEMA 12, Hinged - B121206CH

Wiegmann
SKU:
B121206CH
|
UPC:
786725331536
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Enclosure NEMA Rating 12, 13, Material of Enclosure Carbon Steel, 12 in, Hinged Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Clamps, Screws, Finish ANSI 61 Powder Coated, Color Gray, Depth 6 in, Enclosure Cover Features Screwdown Clamps, Features External Mounting Plates, Seamless Polyurethane Poured in Place Gasket, Height 12 in, Interior Panel 4KP36, Metal Gauge 14/16 ga, Wall Mounting, Series JIC-BCH, Standards CSA Certified, cULus, UL Listed, Usable Opening Depth 5.88 in
Additional Information
Country of Origin:
Mexico
CAD Available:
Yes
Item:
Electrical Enclosures
Nominal Width:
12 in
Nominal Height:
12 in
Nominal Depth:
6 in
Enclosure NEMA Rating:
NEMA 12
Material of Enclosure:
Carbon Steel
Closure Method:
Screw Clamps
Enclosure Cover Type:
Hinged
Knockouts:
Yes
Metallic / Non-Metallic:
Metallic
Color:
Gray
Finish:
Polyester Powder
Mounting:
Wall
Solid / Clear Cover:
Solid
Series:
JIC-BCH
Features:
External Mounting Plates
Interior Panel:
4KP36
Metal Gauge:
14/16 ga
Gasket:
Seamless Polyurethane Poured in Place
Standards:
CSA Certified, cULus, UL Listed
Usable Opening Depth:
5.88 in
Cover Type:
Hinged Cover
Enclosure Material:
Steel
Application:
Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water.
Environment - MERCH:
Dust Tight
Body Material Thickness:
14 ga
Gasket Material:
Oil Resistant Neoprene
Compatible Panel Model Number:
P1212, P1212G, P1212PP
Cover Closure Type:
Hinged
NEMA Enclosure Rating:
12, 13
Includes Knockouts:
Knockouts Not Included
Cover Material Thickness:
16 ga
Cover Style:
Solid
Package Quantity:
1
