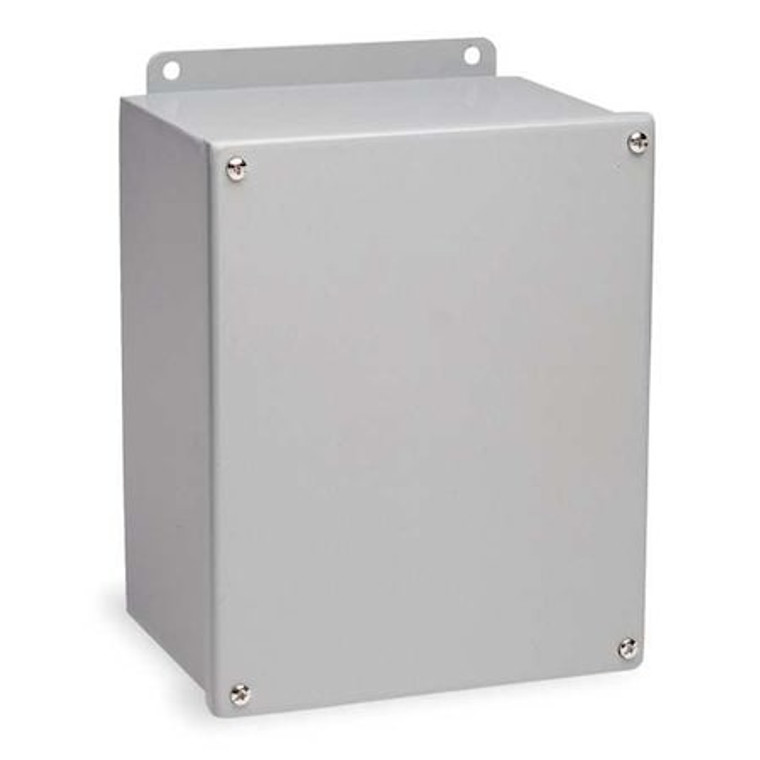

Carbon Steel Electrical Enclosures, 12 in H, 5 in D, 10 in W, NEMA 12, Screw On - B121005SC

Carbon Steel Electrical Enclosures, 12 in H, 5 in D, 10 in W, NEMA 12, Screw On - B121005SC

Wiegmann
SKU:
B121005SC
|
UPC:
786725330836
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Enclosure NEMA Rating 12, 13, Material of Enclosure Carbon Steel, 10 in, Screw On Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Screws, Finish ANSI 61 Powder Coated, Color Gray, Depth 5 in, Enclosure Cover Features Captivated Cover Screws, Features External Mounting Plates, Neoprene Gasket, Height 12 in, Interior Panel 6XC22, Metal Gauge 14 ga, Wall Mounting, Series B-SC, Standards CSA Certified, cULus, UL Listed, Usable Opening Depth 4.88 in, Width 10 in
Additional Information
Country of Origin:
United States
Item:
Electrical Enclosures
Nominal Width:
10 in
Nominal Height:
12 in
Nominal Depth:
5 in
Enclosure NEMA Rating:
NEMA 12
Material of Enclosure:
Carbon Steel
Closure Method:
Captive Screws
Enclosure Cover Type:
Screw On
Knockouts:
Yes
Metallic / Non-Metallic:
Metallic
Color:
Gray
Finish:
Polyester Powder
Mounting:
Wall
Solid / Clear Cover:
Solid
Series:
B-SC
Gasket:
Neoprene
Usable Opening Depth:
4.88 in
Interior Panel:
6XC22
Standards:
CSA Certified, cULus, UL Listed
Enclosure Cover Features:
Captivated Cover Screws
Metal Gauge:
14 ga
Features:
External Mounting Plates
Enclosure Material:
Steel
Weight:
12 lb.
Capacity:
600 cu.in
Application:
Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water.
Cover Material Thickness:
14 ga
Body Material Thickness:
14 ga
NEMA Enclosure Rating:
12, 13
Includes Knockouts:
Knockouts Not Included
Environment - MERCH:
Dust Tight
Compatible Panel Model Number:
P1210, P1210G, P1210PP
Gasket Material:
Oil Resistant Neoprene
Cover Style:
Solid
Cover Closure Type:
Screw On
Package Quantity:
1
