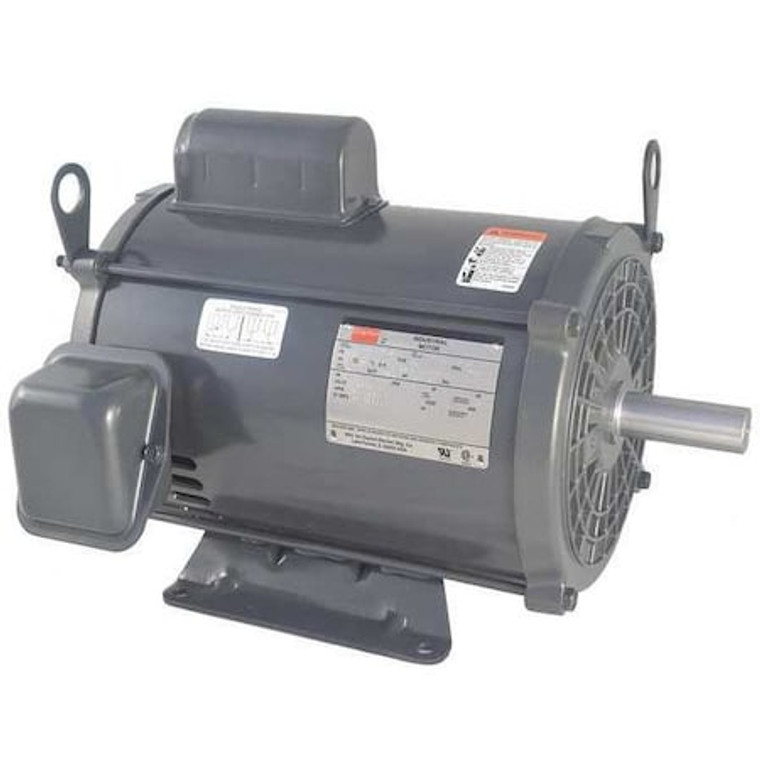

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 215 Frame - 5K483

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 215 Frame - 5K483

Dayton
SKU:
5K483
|
UPC:
190735345221
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 35.6/17.8 A, 215 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
Additional Information
Country of Origin:
Multiple
Item:
General Purpose Motor
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
Rigid Base
HP:
3 hp
RPM Range:
1,701-1,800
Voltage:
115/230V AC
Frame:
215
Motor Thermal Protection:
None
Motor Service Factor:
1.15
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application:
General Purpose
Nameplate RPM:
1,745
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start/Run
Standards:
CSA Certified (258525), UL Component Recognition (E47479)
Motor Bearings:
Ball
Phase:
Single
Manufacturers Warranty Length:
1 yr
Shaft Length:
3 in
Nominal Efficiency:
80.4 %
Ins. Class:
F
Frame Material:
Steel
Length Less Shaft:
13 7/8 in
RPM Group:
1701-1800
Includes:
Shaft Key
Duty:
Continuous
Motor Efficiency Group:
Energy Efficient
Shaft Dia.:
1 1/8 in
Hz:
60 Hz
Max. Ambient Temp.:
40 Degrees C
Footnotes:
GP Mtr,CS,ODP,3 HP,1745 rpm,215
Full Load Amps:
35.6/17.8 A
Inverter Rated:
Not Inverter Rated
Overall Length:
16 7/8 in
Duty Cycle:
Continuous
RPM @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Package Quantity:
1
