Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 215 Frame - 5K483
Manufacturer: Dayton
MFR # 5K483
Log in for pricing
Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182T Frame - 6K145
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

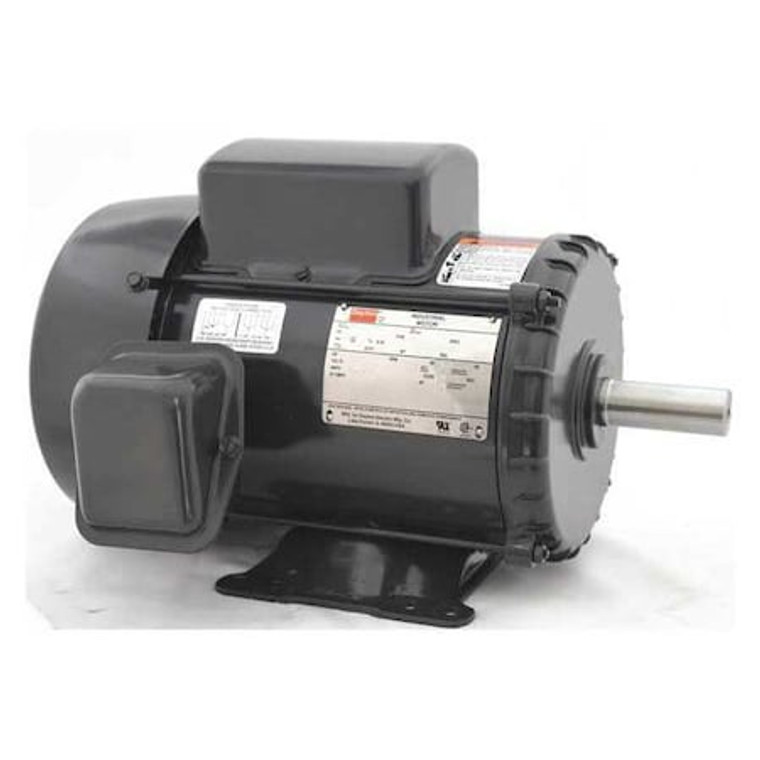

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 182T Frame - 6K145
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,540, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 32.0/16.0 A, 182T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
- Country of Origin:
- Multiple
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 3 hp
- RPM Range:
- 3,001-3,600
- Voltage:
- 115/230V AC
- Frame:
- 182T
- Motor Thermal Protection:
- None
- Motor Service Factor:
- 1
- No. of Speeds:
- 1
- Voltage Compatibility:
- 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
- Motor Application:
- General Purpose
- Nameplate RPM:
- 3,540
- Motor Frame Material:
- Steel
- Motor Mounting Position:
- All Angle
- Motor Shaft Design:
- Keyed
- Motor Shaft Rotation:
- CW/CCW
- Motor Design:
- Capacitor-Start/Run
- Standards:
- CSA Certified (258525), UL Recognized (E47479)
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Length:
- 2 7/8 in
- Duty:
- Continuous
- Ins. Class:
- F
- Full Load Amps:
- 32.0/16.0 A
- Shaft Dia.:
- 1 1/8 in
- Nominal Efficiency:
- 79.2 %
- Motor Efficiency Group:
- Energy Efficient
- RPM Group:
- 3001-3600
- Hz:
- 60 Hz
- Manufacturers Warranty Length:
- 1 yr
- Motor Bearings:
- Ball
- Overall Length:
- 16 5/8 in
- Footnotes:
- 24
- Length Less Shaft:
- 13 7/8 in
- Phase:
- Single
- Includes:
- Conduit Box
- Frame Material:
- Steel
- Duty Cycle:
- Continuous
- Service Factor @ 50Hz:
- Not Applicable
- Full Load Amps @ 50Hz:
- Not Applicable
- HP @ 50Hz:
- Not Applicable
- Voltage @ 50Hz:
- Not Applicable
- RPM @ 50Hz:
- Not Applicable
- Package Quantity:
- 1
-
-
Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56 Frame - 30PT79
Manufacturer: Dayton
MFR # 30PT79
Log in for pricing
-
Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame, 1,730 Nameplate RPM - 5K953
Manufacturer: Dayton
MFR # 5K953
Log in for pricing
-
Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame - 31TR92
Manufacturer: Dayton
MFR # 31TR92
Log in for pricing
