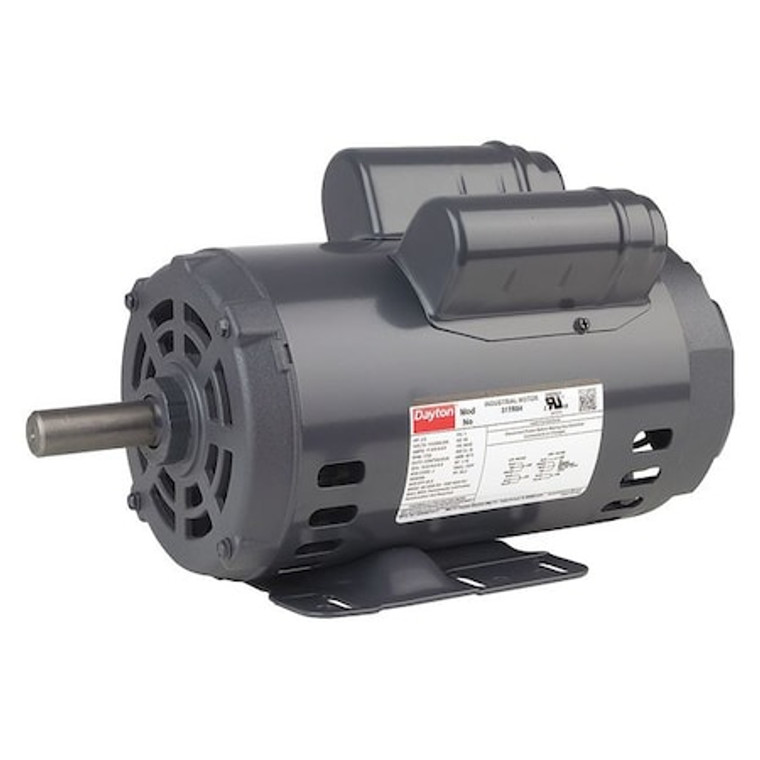

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame - 31TR81

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56HZ Frame - 31TR81

Dayton
SKU:
31TR81
|
UPC:
190735255872
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.4/4.6-4.2 A, 56HZ Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
Rigid Base
HP:
1 hp
RPM Range:
1,701-1,800
Voltage:
115/208-230V AC
Frame:
56HZ
Motor Thermal Protection:
None
Motor Service Factor:
1.15
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application:
General Purpose
Nameplate RPM:
1,725
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start/Run
Standards:
UL (E47479)
Frame Material:
Rolled steel
Shaft Length:
2 1/4 in
Length Less Shaft:
11 in
Includes:
Start/Run Capacitors(506 MFD, 165V Start Capacitor & 65 MFD, 240V Run Capacitor)
Full Load Amps:
8.4/4.6-4.2 A
Ins. Class:
B
Nominal Efficiency:
82.6 %
Phase:
Single
Overall Length:
13 1/4 in
Max. Ambient Temp.:
40 Degrees C
Shaft Dia.:
7/8 in
Duty:
Continuous
Manufacturers Warranty Length:
1 yr
Motor Efficiency Group:
Premium Efficient
Green Certification or Other Recognition:
Energy Aware
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Inverter Rated:
Not Inverter Rated
Motor Bearings:
Ball
RPM Group:
1701-1800
Hz:
60 Hz
Duty Cycle:
Continuous
Capacitor Required:
Yes
Voltage @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Package Quantity:
1
