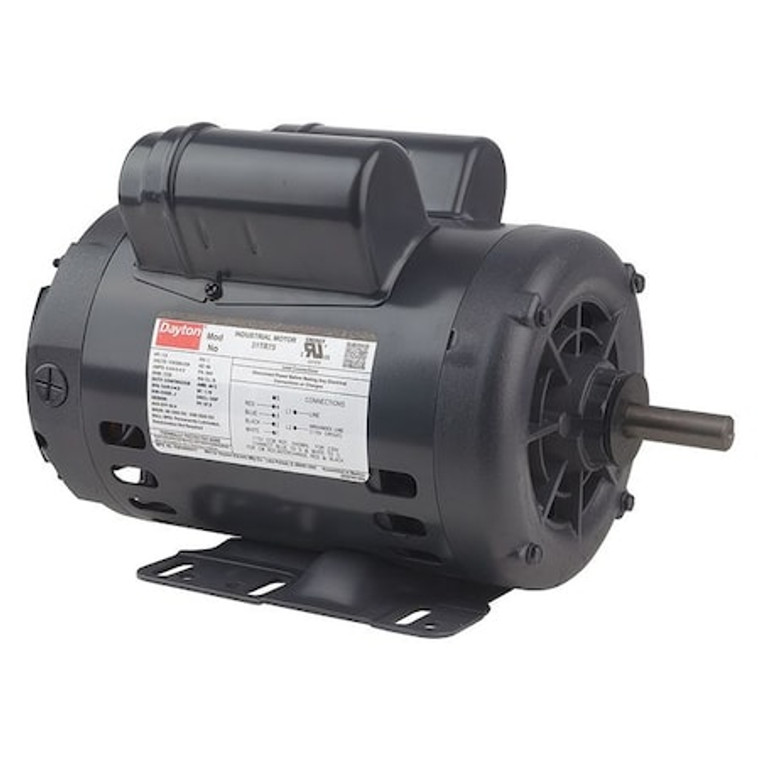

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame - 119162.00

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame - 119162.00

Dayton
SKU:
119162.00
|
UPC:
190735255865
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.4/4.6-4.2 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
Rigid Base
HP:
1 hp
RPM Range:
1,701-1,800
Voltage:
115/208-230V AC
Frame:
56H
Motor Thermal Protection:
Auto
Motor Service Factor:
1.15
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application:
General Purpose
Nameplate RPM:
1,725
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start/Run
Standards:
UL (E37403)
Full Load Amps:
8.4/4.6-4.2 A
Shaft Length:
1 7/8 in
Includes:
Start/Run Capacitors(506 MFD, 165V Start Capacitor & 65 MFD, 240V Run Capacitor)
Overall Length:
13 1/8 in
Phase:
Single
Manufacturers Warranty Length:
1 yr
RPM Group:
1701-1800
Nominal Efficiency:
82.6 %
Frame Material:
Rolled steel
Green Certification or Other Recognition:
Energy Aware
Inverter Rated:
Not Inverter Rated
Shaft Dia.:
5/8 in
Duty:
Continuous
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Motor Bearings:
Ball
Length Less Shaft:
11 3/16 in
Max. Ambient Temp.:
40 Degrees C
Hz:
60 Hz
Ins. Class:
B
Motor Efficiency Group:
Premium Efficient
Duty Cycle:
Continuous
Capacitor Required:
Yes
HP @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Package Quantity:
1
