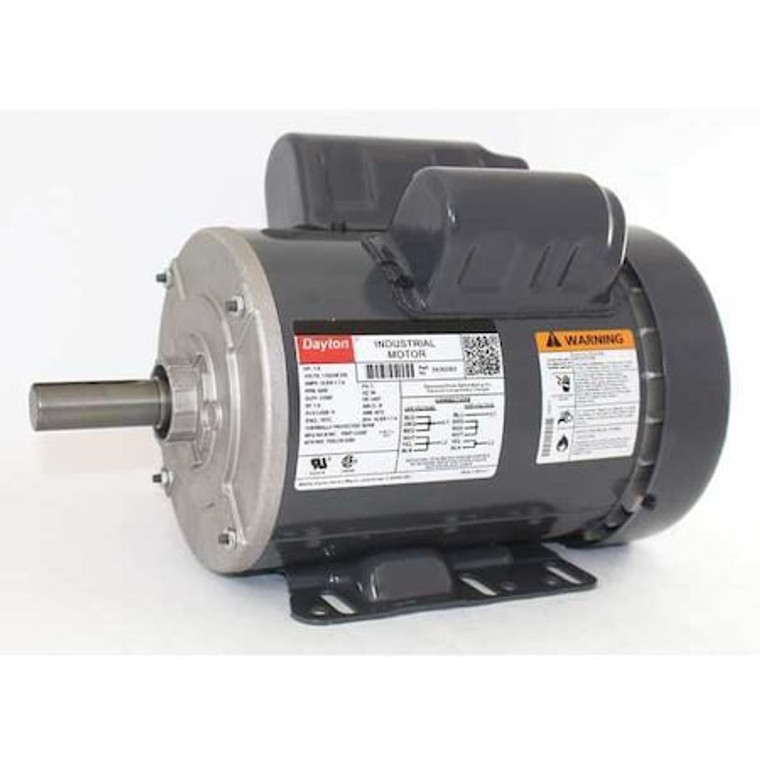

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 143T Frame - 3K300

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 143T Frame - 3K300

Dayton
SKU:
3K300
|
UPC:
190735290194
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 143T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan Cooled
Motor Mounting Type:
Rigid Base
HP:
1 1/2 hp
RPM Range:
3,001-3,600
Voltage:
115/208-230V AC
Frame:
143T
Motor Thermal Protection:
None
Motor Service Factor:
1
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application:
General Purpose
Nameplate RPM:
3,450
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start/Run
Standards:
CSA Certified (258501), UL Component Recognized (E47479)
Max. Ambient Temp.:
40 Degrees C
Shaft Length:
2 1/4 in
Ins. Class:
B
Shaft Dia.:
7/8 in
Overall Length:
13 1/4 in
Motor Bearings:
Ball
Manufacturers Warranty Length:
1 yr
Length Less Shaft:
10 11/16 in
Motor Efficiency Group:
Energy Efficient
Phase:
Single
Duty:
Continuous
Nominal Efficiency:
76.2 %
Footnotes:
24, 51
Full Load Amps:
14.6/8.1-7.4 A
Hz:
60 Hz
Includes:
3/16 x 3/16 x 1 1/4 in Shaft Key
Frame Material:
143/5T
RPM Group:
3001-3600
Duty Cycle:
Continuous
Full Load Amps @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Package Quantity:
1
