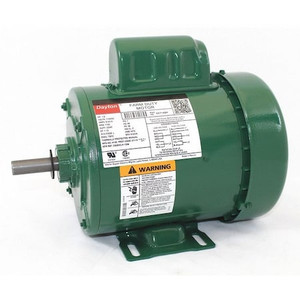

Capacitor-Start High Torque Farm Duty Motor, 1 HP, 115/230V AC Voltage, 56HC Frame - 1TMW9

Dayton
SKU:
1TMW9
|
UPC:
190735147528
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
High Torque Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 14.0/7.0 A, 56HC Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
Country of Origin:
Mexico
Item:
High Torque Farm Duty Motor
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Motor Mounting Type:
Face/Base
HP:
1
RPM Range:
1,701-1,800
Voltage:
115/230V AC
Frame:
56HC
Motor Thermal Protection:
Manual
Motor Service Factor:
1.15
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application:
Farm Duty
Motor Sub Application:
High Torque
Nameplate RPM:
1,725
Motor Frame Material:
Rolled Steel
Motor Mounting Position:
Horizontal
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start
Standards:
CSA Certified (258501), UL Recognized (E37403)
Nominal Efficiency:
69 %
Duty:
Continuous
Full Load Amps:
14.0/7.0 A
Includes:
Shaft Slinger, Gasketed Conduit Box, Shaft Key, Removable Base
Phase:
Single
Shaft Length:
1 7/8 in
Ins. Class:
F
Shaft Dia.:
5/8 in
Hz:
60 Hz
Length Less Shaft:
11 in
Capacitor Required:
Included
Motor Bearings:
Ball
Frame Material:
Rolled steel
Max. Ambient Temperature:
40 Degrees C
Overall Length:
12 7/8 in
Item - Farm Duty Motors:
High Torque Farm Duty Motor
Finish:
Enamel
Max. Ambient Temp.:
40 Degrees C
Duty Cycle:
Continuous
Replacement For:
4VZ12, 4VZ13
Package Quantity:
1
