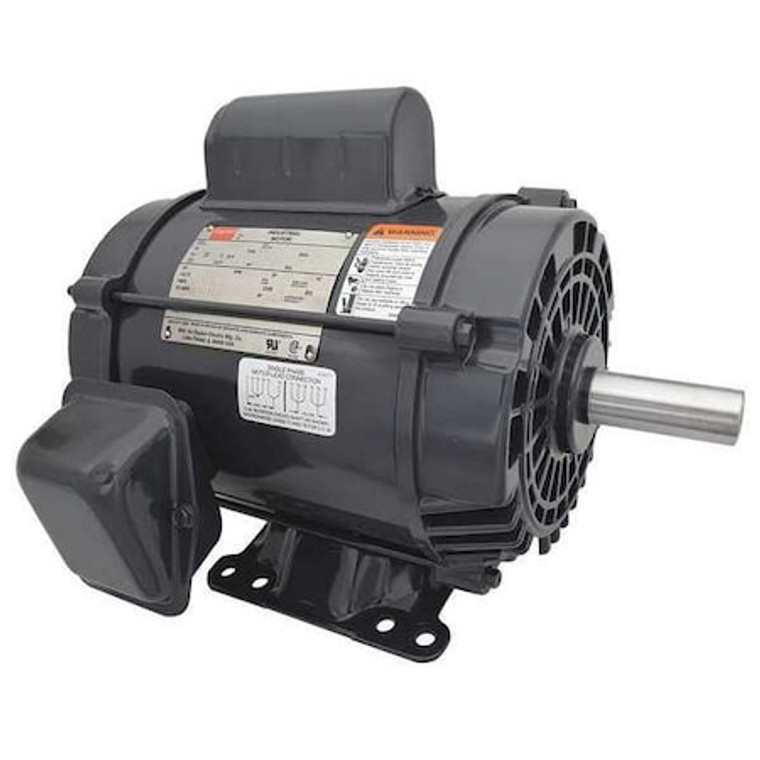

Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame, 1,730 Nameplate RPM - 5K953

Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame, 1,730 Nameplate RPM - 5K953

Dayton
SKU:
5K953
|
UPC:
190735345559
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,730, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 23.2/11.6 A, 182T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
Country of Origin:
Multiple
Item:
General Purpose Motor
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
Rigid Base
HP:
2 hp
RPM Range:
1,701-1,800
Voltage:
115/230V AC
Frame:
182T
Motor Thermal Protection:
None
Motor Service Factor:
1.15
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application:
General Purpose
Nameplate RPM:
1,730
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start
Standards:
CSA Certified (191252), UL Recognized (E47479)
Hz:
60 Hz
Frame Material:
Steel
RPM Group:
1701-1800
Length Less Shaft:
12 in
Footnotes:
52,55
Motor Bearings:
Ball
Overall Length:
14 3/4 in
Duty:
Continuous
Shaft Length:
2 3/4 in
Ins. Class:
F
Includes:
Conduit Box
Manufacturers Warranty Length:
1 yr
Motor Efficiency Group:
Standard Efficient
Shaft Dia.:
1 1/8 in
Phase:
Single
Full Load Amps:
23.2/11.6 A
Nominal Efficiency:
75.1 %
Max. Ambient Temp.:
40 Degrees C
Duty Cycle:
Continuous
RPM @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Package Quantity:
1
