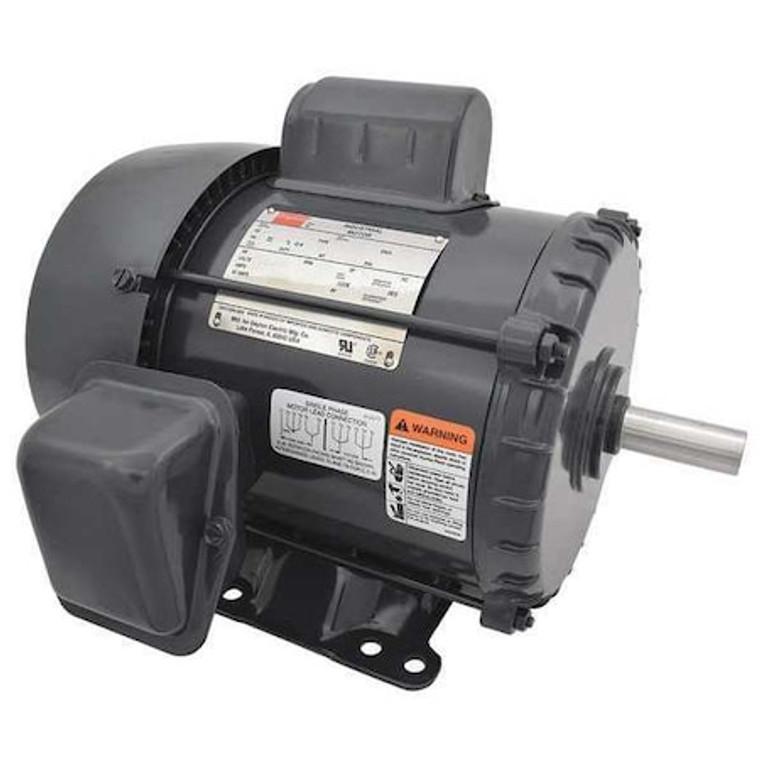

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 182 Frame, 1,740 Nameplate RPM - 5K485

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 182 Frame, 1,740 Nameplate RPM - 5K485

Dayton
SKU:
5K485
|
UPC:
190735345238
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.8/6.9 A, 182 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
Country of Origin:
Multiple
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan Cooled
Motor Mounting Type:
Rigid Base
HP:
1 hp
RPM Range:
1,701-1,800
Voltage:
115/230V AC
Frame:
182
Motor Thermal Protection:
None
Motor Service Factor:
1
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application:
General Purpose
Nameplate RPM:
1,740
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start
Standards:
UL Recognition (E47479) and CSA Certification (285525)
RPM Group:
1701-1800
Duty:
Continuous
Hz:
60 Hz
Nominal Efficiency:
74.9 %
Full Load Amps:
13.8/6.9 A
Motor Bearings:
Ball
Frame Material:
Steel
Shaft Length:
2 3/4 in
Length Less Shaft:
11 3/8 in
Motor Efficiency Group:
Standard Efficient
Shaft Dia.:
7/8 in
Overall Length:
14 1/8 in
Manufacturers Warranty Length:
1 yr
Max. Ambient Temp.:
40 Degrees C
Ins. Class:
F
Phase:
Single
Duty Cycle:
Continuous
HP @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Package Quantity:
1
