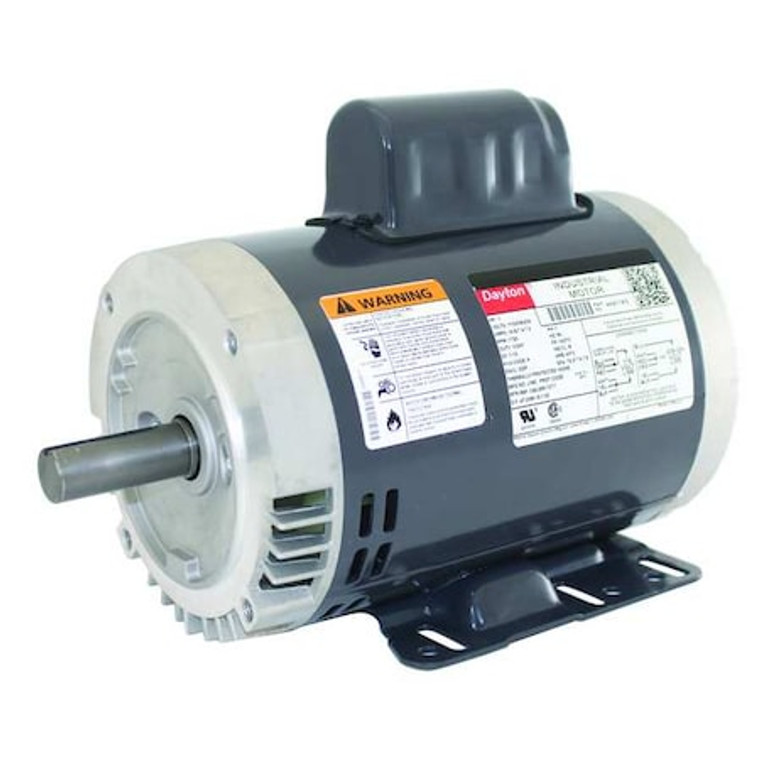

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 145TC Frame - 4K811

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 145TC Frame - 4K811

Dayton
SKU:
4K811
|
UPC:
190735327548
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.8/7.5-7.3 A, 145TC Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
C-Face, Rigid Base
HP:
1 hp
RPM Range:
1,701-1,800
Voltage:
115/208-230V AC
Frame:
145TC
Motor Thermal Protection:
None
Motor Service Factor:
1.15
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application:
General Purpose
Nameplate RPM:
1,725
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start
Standards:
CSA Certified (258501), UL Recognized (E47479)
Shaft Length:
2 1/8 in
RPM Group:
1701-1800
Shaft Dia.:
7/8 in
Motor Efficiency Group:
Standard Efficient
Motor Bearings:
Ball
Length Less Shaft:
9 13/16 in
Ins. Class:
B
Hz:
60 Hz
Nominal Efficiency:
70 %
Frame Material:
Steel
Includes:
Conduit Box, Shaft Key
Inverter Rated:
Not Inverter Rated
Phase:
Single
Duty:
Continuous
Full Load Amps:
14.8/7.5-7.3 A
Manufacturers Warranty Length:
1 yr
Overall Length:
11 15/16 in
Max. Ambient Temp.:
40 Degrees C
Footnotes:
51
Duty Cycle:
Continuous
HP @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Package Quantity:
1
