Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 48 Frame - 5K191BG
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

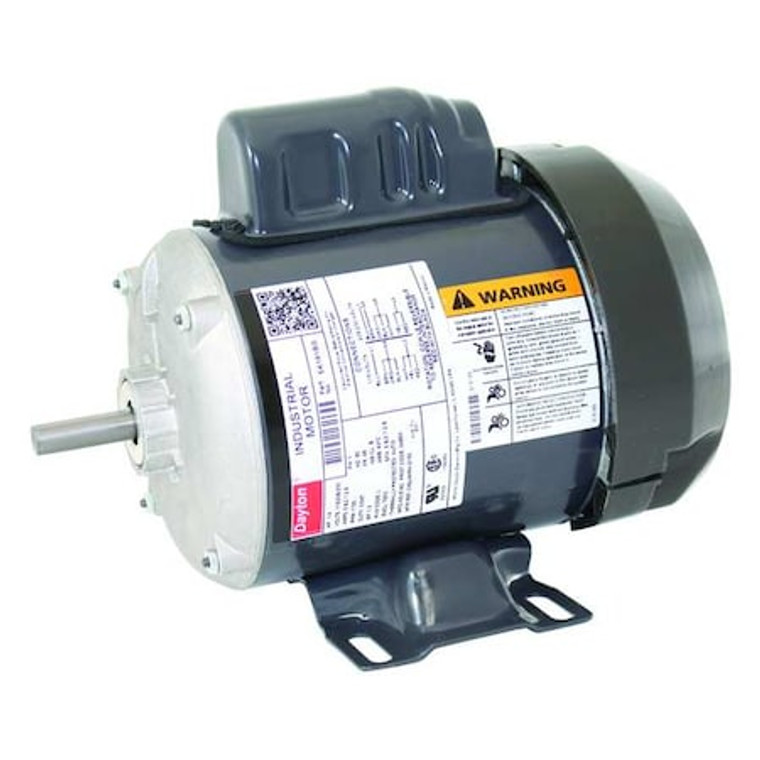

Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/208-230V AC Voltage, 48 Frame - 5K191BG
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.6/2.8-2.7 A, 48 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Flat
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan Cooled
- Motor Mounting Type:
- Rigid Base
- HP:
- 1/4 hp
- RPM Range:
- 1,701-1,800
- Voltage:
- 115/208-230V AC
- Frame:
- 48
- Motor Thermal Protection:
- Auto
- Motor Service Factor:
- 1
- No. of Speeds:
- 1
- Voltage Compatibility:
- 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
- Motor Application:
- General Purpose
- Nameplate RPM:
- 1,725
- Motor Frame Material:
- Steel
- Motor Mounting Position:
- All Angle
- Motor Shaft Design:
- Flat
- Motor Shaft Rotation:
- CW/CCW
- Motor Design:
- Capacitor-Start
- Standards:
- CSA Certified (258501), UL Recognized (E37403)
- Shaft Dia.:
- 1/2 in
- Motor Efficiency Group:
- Standard Efficient
- Duty:
- Continuous
- Motor Bearings:
- Ball
- Footnotes:
- 51
- Frame Material:
- Steel
- Nominal Efficiency:
- 56.1 %
- Full Load Amps:
- 5.6/2.8-2.7 A
- Manufacturers Warranty Length:
- 1 yr
- Includes:
- Conduit Box
- Ins. Class:
- B
- Phase:
- Single
- Hz:
- 60 Hz
- Shaft Length:
- 1 1/2 in
- RPM Group:
- 1701-1800
- Length Less Shaft:
- 9 in
- Max. Ambient Temp.:
- 40 Degrees C
- Overall Length:
- 10 1/2 in
- Duty Cycle:
- Continuous
- Voltage @ 50Hz:
- Not Applicable
- Service Factor @ 50Hz:
- Not Applicable
- Full Load Amps @ 50Hz:
- Not Applicable
- HP @ 50Hz:
- Not Applicable
- RPM @ 50Hz:
- Not Applicable
- Package Quantity:
- 1
-
-
