Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame, 3,450 Nameplate RPM - 5PHA3A
Manufacturer: Dayton
MFR # 5PHA3A
Log in for pricing
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame, 3,450 Nameplate RPM - 5PHA5A
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

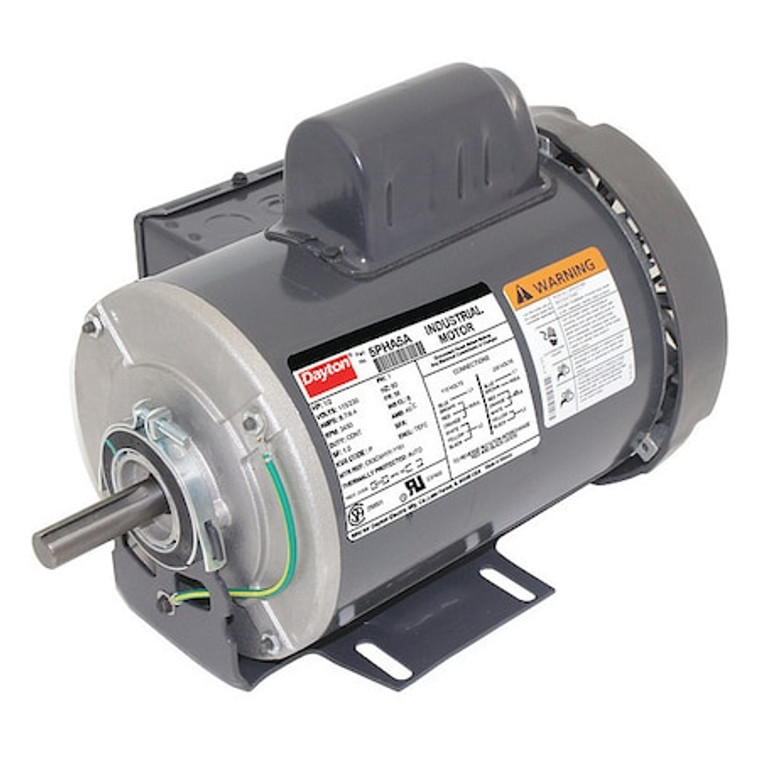

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame, 3,450 Nameplate RPM - 5PHA5A
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.7/4.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
- Country of Origin:
- Mexico
- Item:
- General Purpose Motor
- Motor Enclosure Design:
- Totally Enclosed Fan Cooled
- Motor Mounting Type:
- Cradle Base
- HP:
- 1/2 hp
- RPM Range:
- 3,001-3,600
- Voltage:
- 115/230V AC
- Frame:
- 56
- Motor Thermal Protection:
- Auto
- Motor Service Factor:
- 1
- No. of Speeds:
- 1
- Voltage Compatibility:
- 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
- Motor Application:
- General Purpose
- Nameplate RPM:
- 3,450
- Motor Frame Material:
- Steel
- Motor Mounting Position:
- All Angle
- Motor Shaft Design:
- Keyed
- Motor Shaft Rotation:
- CW/CCW
- Motor Design:
- Capacitor-Start
- Standards:
- CSA (258501), UL (E37403)
- Manufacturers Warranty Length:
- 1 yr
- Frame Material:
- Rolled steel
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Length:
- 1 7/8 in
- Length Less Shaft:
- 9 15/16 in
- Full Load Amps:
- 8.7/4.4 A
- Motor Bearings:
- Ball
- Ins. Class:
- B
- RPM Group:
- 3001-3600
- Phase:
- Single
- Nominal Efficiency:
- 59.3 %
- Duty:
- Continuous
- Hz:
- 60 Hz
- Overall Length:
- 11 13/16 in
- Shaft Dia.:
- 5/8 in
- Motor Efficiency Group:
- Standard Efficient
- Duty Cycle:
- Continuous
- HP @ 50Hz:
- Not Applicable
- Full Load Amps @ 50Hz:
- Not Applicable
- RPM @ 50Hz:
- Not Applicable
- Voltage @ 50Hz:
- Not Applicable
- Service Factor @ 50Hz:
- Not Applicable
- Package Quantity:
- 1
-
-
Capacitor-Start/Run General Purpose Motor, 1 HP, 56 Frame, 115/230V AC Voltage, 3,450 Nameplate RPM - 30PT74
Manufacturer: Dayton
MFR # 30PT74
Log in for pricing
-
Capacitor-Start/Run General Purpose Motor, 1 HP, 56 Frame, 115/230V AC Voltage, 1,725 Nameplate RPM - 30PT77
Manufacturer: Dayton
MFR # 30PT77
Log in for pricing
-
Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame, 1,730 Nameplate RPM - 5K953
Manufacturer: Dayton
MFR # 5K953
Log in for pricing
