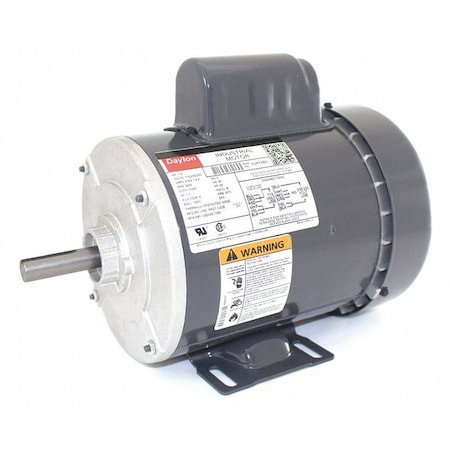

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame - 5UKF2

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame - 5UKF2

Dayton
SKU:
5UKF2
|
UPC:
190735351666
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.6/4.1-4.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Enclosure Design:
Totally Enclosed Fan Cooled
Motor Mounting Type:
Rigid Base
HP:
1/2 hp
RPM Range:
3,001-3,600
Voltage:
115/208-230V AC
Frame:
56
Motor Thermal Protection:
None
Motor Service Factor:
1
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application:
General Purpose
Nameplate RPM:
3,450
Motor Frame Material:
Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start
Standards:
CE, CSA, UL
Ins. Class:
B
Length Less Shaft:
10 1/2 in
Nominal Efficiency:
59.5 %
Phase:
Single
RPM Group:
3001-3600
Shaft Dia.:
5/8 in
Manufacturers Warranty Length:
1 yr
Hz:
60 Hz
Duty:
Continuous
Frame Material:
Steel
Max. Ambient Temp.:
40 Degrees C
Motor Bearings:
Ball
Full Load Amps:
8.6/4.1-4.4 A
Overall Length:
11 13/16 in
Motor Efficiency Group:
Standard Efficient
Includes:
Conduit Box
Shaft Length:
2 5/16 in
Duty Cycle:
Continuous
HP @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Package Quantity:
1
