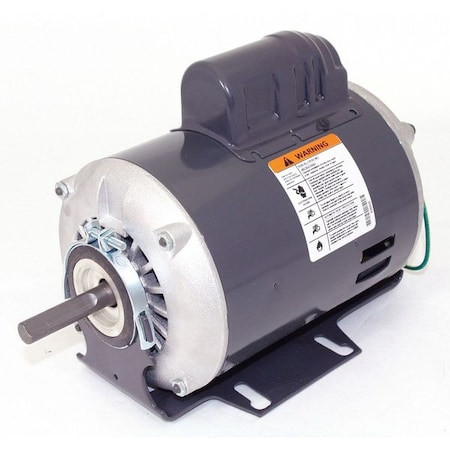

Capacitor-Start Belt Drive Motor, 1/3 HP, 115/230 Voltage, 48Z Frame, 1,725 Nameplate RPM - 6K490

Capacitor-Start Belt Drive Motor, 1/3 HP, 115/230 Voltage, 48Z Frame, 1,725 Nameplate RPM - 6K490

Dayton
SKU:
6K490
|
UPC:
190735366080
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230, 5.4/2.7 A Full Load Amps, 48Z Frame, 60/50 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
Additional Information
Country of Origin:
Mexico
Item:
Belt Drive Motor
Motor Enclosure Design:
Open Dripproof
Motor Mounting Type:
Cradle Base
HP:
1/3
RPM Range:
1,701-1,800
Voltage:
115/230
Frame:
48Z
Motor Thermal Protection:
Auto
Motor Service Factor:
1.35
No. of Speeds:
1
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application:
HVAC/R
Motor Sub Application:
Belt Drive Fan/Blower
Nameplate RPM:
1,725
Motor Frame Material:
Rolled Steel
Motor Mounting Position:
All Angle
Motor Shaft Design:
Flat
Motor Shaft Rotation:
CW/CCW
Motor Design:
Capacitor-Start
Standards:
CSA Certified, UL Recognized
Duty:
Continuous
Shaft Length:
1 7/8 in
Frame Material:
Rolled steel
Length Less Shaft:
9 1/8 in
Max. Ambient Temp.:
104 Degrees F
Ins. Class:
B
Phase:
Single
Full Load Amps:
5.4/2.7 A
Body Dia.:
5 5/8 in
Footnotes:
6
Shaft Dia.:
1/2 in
Motor Bearings:
Ball
Overall Length:
10 13/16 in
Manufacturers Warranty Length:
1 yr
Hz:
60/50 Hz
Duty Cycle:
Continuous
Package Quantity:
1
