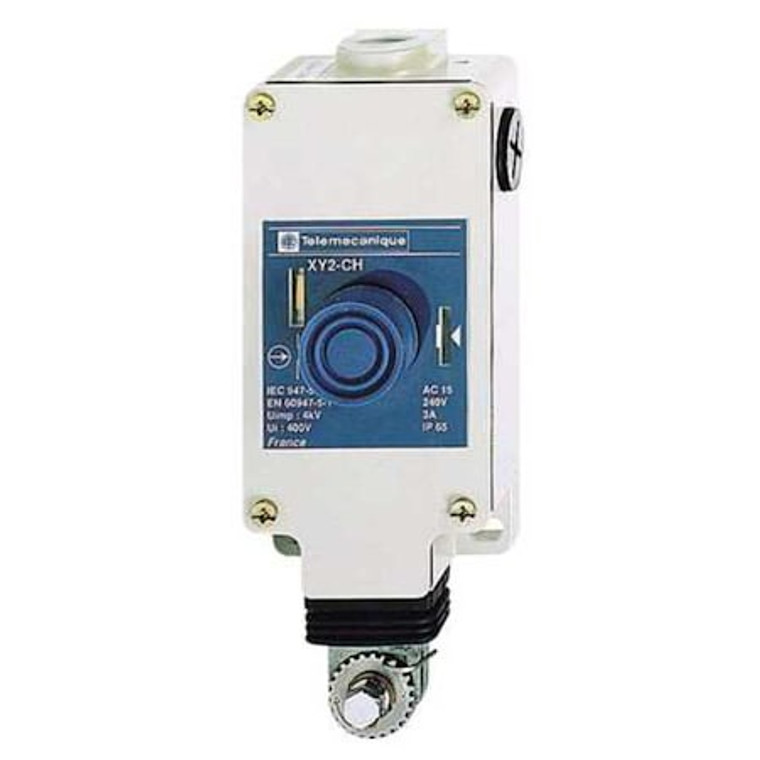

Cable Pull Switch, 10A, Universal, 1NO+1NC - XY2CH13150H7

Cable Pull Switch, 10A, Universal, 1NO+1NC - XY2CH13150H7

Telemecanique Sensors
SKU:
XY2CH13150H7
|
UPC:
785901722120
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Single End, AC Contact Rating 3 A @ 240 V, Contact Form 1NO/1NC, Push Button Reset, Max. Cable Span 50 ft, Operating Force 4.5 lb, NEMA Rating 1, 12, 4, Indicator No Indicator, Cable Connection Location Left or Right, Thermal Amperage 10 A, Length 7.76 in, Width 2.68 in, Depth 1.57 in, Switching Ability Single Cable, DC Contact Rating 0.27 A @ 250 V, Min. Current Not Applicable, Case Material Zamak, Wiring Entry 1/2 in NPT
Additional Information
Country of Origin:
Multiple
Item:
Emergency Cable Pull Switch
Switch Function:
Maintained
Mounting Style:
Single End
AC Contact Rating:
3 A @ 240 V
Contact Form:
1NO/1NC
Reset:
Push Button
Max. Cable Span:
50 ft
Operating Force:
4.5 lb
NEMA Rating:
1, 12, 4
Indicator:
No Indicator
Switching Ability:
Single Cable
DC Contact Rating:
0.27 A @ 250 V
Standards:
CCC, CSA, CSA C22.2 No. 14 Machinery Directive 2006/42/EC, EN/IEC 60204-1, EN/IEC 60947-5, EN/IEC 60947-5-5, EN/ISO 13850, UL 508, Work Equipment Directive 2009/104/EC
Wiring Entry:
1/2 in NPT
Width:
2.68 in
IP Rating:
IP65
Depth:
1.57 in
Thermal Amperage:
10 A
Cable Connection Location:
Left or Right
Length:
7.76 in
Min. Current:
Not Applicable
Case Material:
Zamak
For Use With:
Preventa XPS Safety Relays
Length (Straight Wireway):
7.76 in
Body Material:
zamak
Series:
XY2CE
Operating Temperature - Minimum:
-13 Degrees F
Cable Span - Maximum:
98 ft
Overall Depth:
1.57 in
Operating Temperature - Maximum:
158 Degrees F
Action:
Maintained
Manufacturer Warranty Length:
18 mo
Overall Width:
2.68 in
Thermal Current:
10 A
Pull Force:
4.5 lb
NEMA Enclosure Rating:
1, 12, 4
Overvoltage Category:
class I EN/IEC 61140 || class I NF C 20-030
[Ithe] Conventional Enclosed Thermal Current:
10 A
Contact Operation:
slow-break
Protective Treatment:
TC
Cover Material:
stainless steel
Local Signalling:
without pilot light
Tightening Torque:
0.8-1.2 N.m
[Ui] Rated Insulation Voltage:
500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Compatibility Code:
XY2CH
Distance Between Cable Supports:
5-5 m
Positive Opening:
with EN/IEC 60947-5-1
Ip Degree Of Protection:
IP65 IEC 60529
Ambient Air Temperature For Storage:
-40-70°C
Maximum Resistance Across Terminals:
25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60269
Contacts Type And Composition:
1 NC + 1 NO
Vibration Resistance:
10 gn 10-150 Hz)EN/IEC 60068-2-6
Mechanical Durability:
800000 cycles
Safety Level:
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and
Trigger Cable Maximum Length:
30 m
Marking:
CE
Housing Colour:
red RAL 3000
Product Or Component Type:
latching emergency stop rope pull switch
Connections - Terminals:
screw clamp terminal, 1 x 0.5 to 2 x 1.5 mm²
Ambient Air Temperature For Operation:
-25-70°C
Shock Resistance:
50 gn 11 ms EN/IEC 60068-2-27
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Cable Entry Number:
3 tapped entry 1/2 NPT conduit entry"
Device Short Name:
XY2CH
Product Certifications:
UL category NISD emergency stop devices || CSA || CCC
Trigger Cable Anchor Point:
RH or LH side
Number Of Cables:
1
Package Quantity:
1
