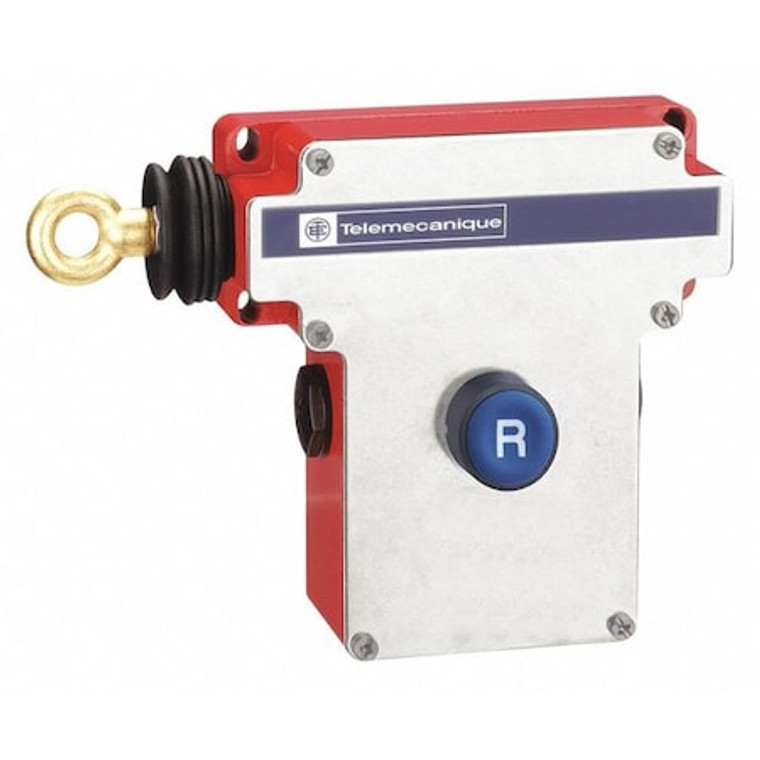

Cable Pull Switch, 10A, Left, 1NO+1NC - XY2CE2A150H7

Cable Pull Switch, 10A, Left, 1NO+1NC - XY2CE2A150H7

Telemecanique Sensors
SKU:
XY2CE2A150H7
|
UPC:
785901609100
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Single End, AC Contact Rating 3 A @ 240 V, Contact Form 1NO/1NC, Push Button Reset, Max. Cable Span 165 ft, Operating Force Not Applicable, NEMA Rating 1, 12, 4, Indicator No Indicator, Cable Connection Location Left, Thermal Amperage 10 A, Length 9.0 in, Width 9.02 in, Depth 4.13 in, Switching Ability Single Cable, DC Contact Rating 0.27 A @ 250 V, Min. Current Not Applicable, Case Material Zamak, Wiring Entry 1/2 in NPT
Additional Information
Country of Origin:
Multiple
Item:
Emergency Cable Pull Switch
Switch Function:
Maintained
Mounting Style:
Single End
AC Contact Rating:
3 A @ 240 V
Contact Form:
1NO/1NC
Reset:
Push Button
Max. Cable Span:
165 ft
Operating Force:
Not Applicable
NEMA Rating:
1, 12, 4
Indicator:
No Indicator
Switching Ability:
Single Cable
DC Contact Rating:
0.27 A @ 250 V
Case Material:
Zamak
Wiring Entry:
1/2 in NPT
IP Rating:
IP65
Length:
9.0 in
Depth:
4.13 in
Thermal Amperage:
10 A
Width:
9.02 in
For Use With:
Preventa XPS Safety Relays
Cable Connection Location:
Left
Min. Current:
Not Applicable
Standards:
CCC, CSA, CSA C22.2 No. 14 Machinery Directive 2006/42/EC, EN/IEC 60204-1, EN/IEC 60947-5, EN/IEC 60947-5-5, EN/ISO 13850, UL 508, Work Equipment Directive 2009/104/EC
Length (Straight Wireway):
9.0 in
Series:
XY2CH
Body Material:
zamak
Overvoltage Category:
class I EN/IEC 61140 || class I NF C 20-030
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60269
Compatibility Code:
XY2CE
Local Signalling:
without pilot light
Safety Level:
can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and
Shock Resistance:
50 gn 11 ms EN/IEC 60068-2-27
Connections - Terminals:
screw clamp terminal, 1 x 0.5 to 2 x 1.5 mm²
Marking:
CE
Number Of Cables:
1
Product Or Component Type:
latching emergency stop rope pull switch
[Ithe] Conventional Enclosed Thermal Current:
10 A
Cover Material:
stainless steel
Protective Treatment:
TC
[Ui] Rated Insulation Voltage:
500 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
Ambient Air Temperature For Operation:
-25-70°C
Housing Colour:
red RAL 3000
Tightening Torque:
0.8-1.2 N.m
Product Certifications:
UL category NISD emergency stop devices || CSA || CCC
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Ip Degree Of Protection:
IP66 IEC 60529
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Trigger Cable Anchor Point:
RH side
Distance Between Cable Supports:
5-5 m
Positive Opening:
with EN/IEC 60947-5-1
Trigger Cable Maximum Length:
70 m
Mechanical Durability:
60000 cycles
Vibration Resistance:
10 gn 10-300 Hz)EN/IEC 60068-2-6
Contact Operation:
slow-break
Cable Entry Number:
3 tapped entry 1/2 NPT conduit entry"
Contacts Type And Composition:
1 NC + 1 NO
Device Short Name:
XY2CE
Ambient Air Temperature For Storage:
-40-70°C
Maximum Resistance Across Terminals:
25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Terminals Description Iso N°1:
(21-22)NC || (13-14)NO
Thermal Current:
10 A
Cable Span - Maximum:
164 ft
Action:
Maintained
Operating Temperature - Maximum:
158 Degrees F
NEMA Enclosure Rating:
1, 12, 4
Overall Depth:
4.13 in
Operating Temperature - Minimum:
-13 Degrees F
Manufacturer Warranty Length:
18 mo
Overall Width:
9.02 in
Package Quantity:
1
