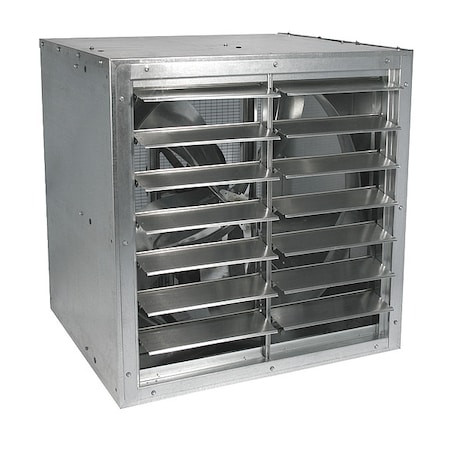

Cabinet Exhaust Fan, 30 In, 115/208-230 V - 1AHB8

Cabinet Exhaust Fan, 30 In, 115/208-230 V - 1AHB8

Dayton
SKU:
1AHB8
|
UPC:
190735131411
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Cabinet Exhaust Fan, Assembled Assembled, Blade Diameter 30 in, Blade Material Steel, Drive Type Belt Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 8,542 cfm, For Cut-Out Height 35 1/4 in, For Cut-Out Width 35 1/4 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Finish Galvanized, Guard Material Steel, Guard Type None, Housing Material Steel, Housing Finish Galvanized, Includes (4) Wall Mounting Angles, Includes Dehumidistat No, Maximum Airflow 8,532 cfm
Additional Information
Country of Origin:
Mexico
Item:
Cabinet Exhaust Fan
Housing Material:
Steel
Exhaust/Supply Fan Item:
Exhaust Fan
Motor RPM:
1,725 RPM
Includes:
(4) Wall Mounting Angles
Motor Type:
Single Phase
Bearing Type:
Regreasable Cast Pillow Block
Max. BHP:
0.87 hp
Drive Package Included:
Yes
Max. Inlet Temp.:
104 Degrees F
Motor Enclosure:
Totally Enclosed Air Over
Mounting Position:
Horizontal
Fan Voltage:
115/208-230V AC
Drive Package With Motor Included:
Yes
Sones @ 0.125-In. SP @ 5 Ft.:
16.2
CFM @ 0.125-In. SP:
7,110 cfm
Number of Blades:
5
CFM @ 0.000-In. SP:
8,542 cfm
Phase:
1
Hz:
60
CFM @ 0.250-In. SP:
5,297 cfm
Height:
34 1/4 in
Width:
34 1/4 in
Assembled/Unassembled:
Assembled
Dimension B:
34 1/8 in
Exhaust/Supply Fan Motor HP:
3/4 hp
Max. Ambient Temp.:
104 Degrees F
Propeller Material:
Fabricated Steel
Blade Dia.:
30 in
Dimension A:
34 1/4 in
Fan RPM:
651
Full Load Amps:
11.0/5.5-5.4
Standards:
AMCA, CSA Certified Motor, UL/cUL 705
Max. Depth:
34 1/8 in
Drive Type:
Belt Drive
Motor Insulation:
Class B
Frame Material:
Steel
Voltage:
115/208-230
Overall Width:
34 1/4 in
Overall Height:
34 1/4 in
Frame Finish:
Zinc Plated
Vent Design:
Ductless
Includes Dehumidistat:
No
Noise Level @ 0.000 in SP @ 5 ft:
17.1 sones
Nameplate Voltage:
115/208-230V AC
Includes Motor:
Yes
Guard Material:
Steel
Exhaust Airflow @ 0.000 in SP:
8,542 cfm
Speed Controllable:
No
Maximum Noise Level:
17.1 sones
Exhaust Airflow @ 0.250 in SP:
5,297 cfm
For Cut-Out Length:
35 1/4 in
Overall Depth:
34 1/8 in
Full Load Current:
11 A
Duct Height:
Not Applicable
Noise Level @ 0.125 in SP @ 5 ft:
16 sones
Guard Type:
None
Motor Horsepower:
3/4 hp
Motor Speed:
1,725 RPM
Maximum Ambient Operating Temperature:
104 Degrees F
Blade Diameter:
30 in
Maximum Inlet Temperature:
104 Degrees F
Manufacturer Warranty Length:
1 yr
Damper Type:
Gravity
For Cut-Out Height:
35 1/4 in
Includes Grill:
No
Number of Fans:
1
Number of Speeds:
1
Duct Diameter:
Not Applicable
Exhaust Airflow @ 0.125 in SP:
7,110 cfm
Duct Shape:
Not Applicable
Maximum Airflow:
8,532 cfm
Blade Material:
Steel
Mounting Orientation:
Vertical
Duct Width:
Not Applicable
Shaft Diameter:
1 in
Housing Finish:
Galvanized
Frequency:
60 Hz
Guard Finish:
Galvanized
Assembled:
Assembled
Fan Style:
Cabinet
For Cut-Out Width:
35 1/4 in
Ventilation Type:
Exhaust
Package Quantity:
1
