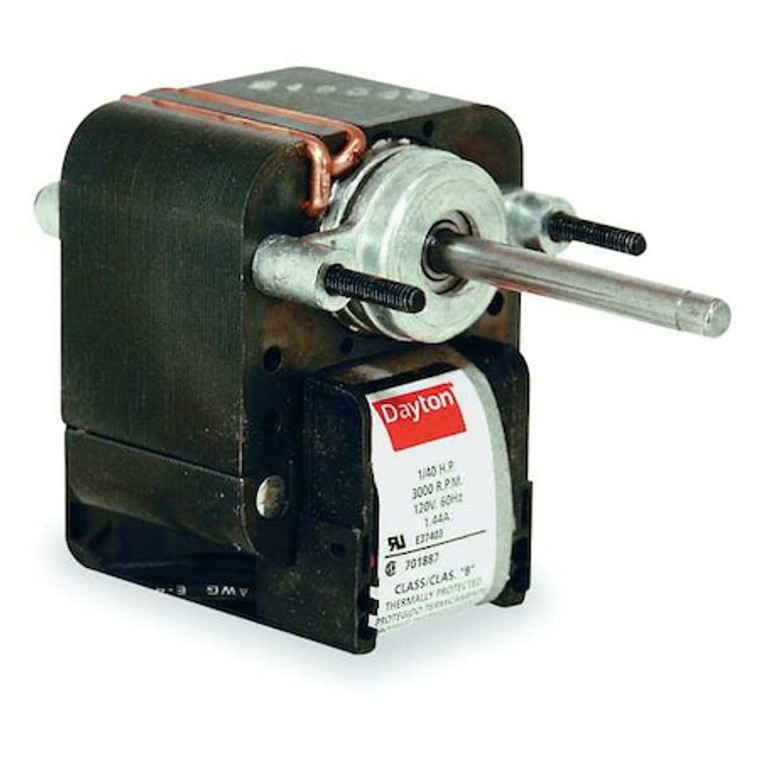

C-Frame Motor, Shaded Pole, Ball, 2 In. L - 4M078E

Dayton
SKU:
4M078E
|
UPC:
190735329924
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/150 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 120V AC, Full Load Amps 1.0 A, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Impedance with One-Shot Backup, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Number of Shafts 1
Country of Origin:
Viet Nam
Item:
C-Frame Motor
Voltage:
120V AC
Shaft Dia.:
3/16 in
HP:
1/150
Nameplate RPM:
3,000
No. of Speeds:
1
Motor Sub Application:
Direct Drive Fan/Blower
RPM Range:
1,801-3,000
Motor Shaft Rotation:
CWSE
Phase:
Single
Length Less Shaft:
1 11/16 in
Motor Mounting Type:
Ring/Stud
Hz:
60 Hz
Stud Quantity:
2
Max. Ambient Temp.:
40 Degrees C
Motor Service Factor:
1
Full Load Amps:
1.0 A
Mounting Stud Location:
Shaft End
Mounting Holes:
(2) #8-32
Frame:
Non-Standard
Motor Design:
Shaded Pole
Motor Thermal Protection:
Impedance with One-Shot Backup
Stud Size:
#8-32
Ins. Class:
B
Cord Length:
12 in
Motor Bearings:
Ball
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Shaft Length:
2 in
Stack Size:
5/8 in
Ambient Temperature:
40 Degrees C
Motor Enclosure Design:
Open Air-Over
O.C. Mounting:
1-7/8 in
Motor Application:
HVAC/R
Standards:
CSA (701887), UL (E37403/E40077/E47479)
Motor Mounting Position:
All Angle
Number of Shafts:
1
Usable @ 208V:
No
Usable @ 200V:
No
Capacitor Required:
No
Number of Speeds:
1
Frequency:
60 Hz
Mounting:
Stud
Package Quantity:
1
