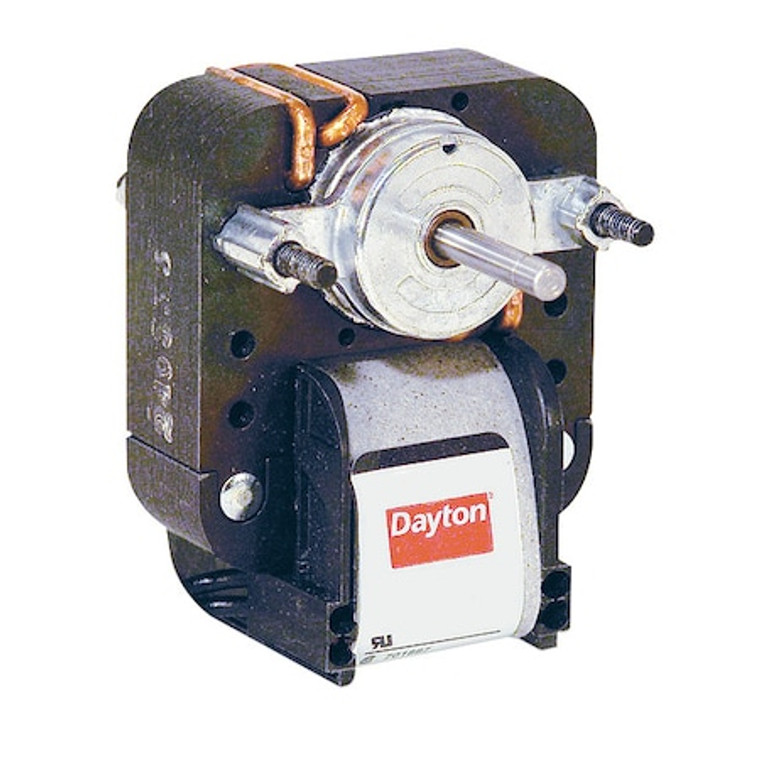

C-Frame Motor, Auto, Shaded Pole, 1 In. L - 5M064E

C-Frame Motor, Auto, Shaded Pole, 1 In. L - 5M064E

Dayton
SKU:
5M064E
|
UPC:
190735346556
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 120V AC, Full Load Amps 2.8 A, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection One-Shot, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Number of Shafts 1
Additional Information
Country of Origin:
Viet Nam
Item:
C-Frame Motor
Voltage:
120V AC
Shaft Dia.:
1/4 in
HP:
1/20
Nameplate RPM:
3,000
No. of Speeds:
1
Motor Sub Application:
Direct Drive Fan/Blower
RPM Range:
1,801-3,000
Motor Shaft Rotation:
CWSE
Phase:
Single
Length Less Shaft:
3 1/8 in
Motor Mounting Type:
Ring/Stud
Hz:
60 Hz
Mounting Stud Location:
Shaft End
Frame:
Non-Standard
Motor Enclosure Design:
Open Air-Over
Full Load Amps:
2.8 A
Motor Bearings:
Sleeve
Stud Quantity:
2
O.C. Mounting:
1-7/8 in
Motor Application:
HVAC/R
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Design:
Shaded Pole
Ins. Class:
B
Max. Ambient Temp.:
40 Degrees C
Shaft Length:
1 in
Standards:
CSA (701887), UL (E37403/E40077/E47479)
Ambient Temperature:
40 Degrees C
Stud Size:
#8-32
Mounting Holes:
(2) #8-32
Stack Size:
2 in
Cord Length:
12 in
Motor Service Factor:
1
Motor Thermal Protection:
One-Shot
Usable @ 200V:
No
Number of Shafts:
1
Usable @ 208V:
No
Motor Mounting Position:
All Angle
Capacitor Required:
No
Mounting:
Stud
Frequency:
60 Hz
Number of Speeds:
1
Package Quantity:
1
