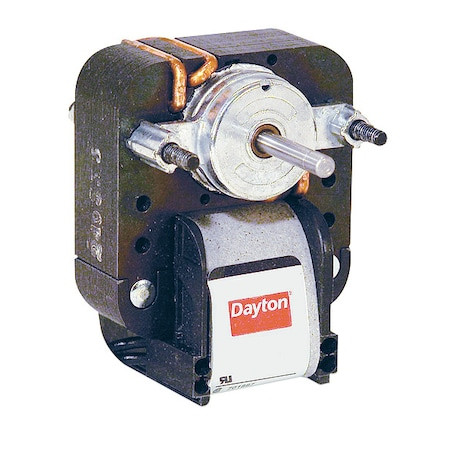

C-Frame Motor, 1 In. L, Shaft End, Auto - 4M074E

C-Frame Motor, 1 In. L, Shaft End, Auto - 4M074E

Dayton
SKU:
4M074E
|
UPC:
190735329887
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/70 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 230V AC, Full Load Amps 0.48 A, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection One-Shot, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Number of Shafts 1
Additional Information
Country of Origin:
Viet Nam
Item:
C-Frame Motor
Voltage:
230V AC
Shaft Dia.:
3/16 in
HP:
1/70
Nameplate RPM:
3,000
No. of Speeds:
1
Motor Sub Application:
Direct Drive Fan/Blower
RPM Range:
1,801-3,000
Motor Shaft Rotation:
CWSE
Phase:
Single
Length Less Shaft:
2 in
Motor Mounting Type:
Ring/Stud
Hz:
60 Hz
Motor Enclosure Design:
Open Air-Over
Stud Size:
#8-32
Shaft Length:
1 in
Standards:
CSA (701887), UL (E37403/E40077/E47479)
Motor Application:
HVAC/R
Cord Length:
12 in
Max. Ambient Temp.:
40 Degrees C
Stud Quantity:
2
Stack Size:
7/8 in
Ins. Class:
B
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Mounting Holes:
(2) #8-32
O.C. Mounting:
1-7/8 in
Motor Bearings:
Sleeve
Motor Thermal Protection:
One-Shot
Motor Service Factor:
1
Motor Design:
Shaded Pole
Includes:
Leads
Mounting Stud Location:
Shaft End
Full Load Amps:
0.48 A
Ambient Temperature:
40 Degrees C
Frame:
Non-Standard
Motor Mounting Position:
All Angle
Number of Shafts:
1
Usable @ 208V:
No
Usable @ 200V:
No
Capacitor Required:
No
Mounting:
Stud
Frequency:
60 Hz
Number of Speeds:
1
Package Quantity:
1
