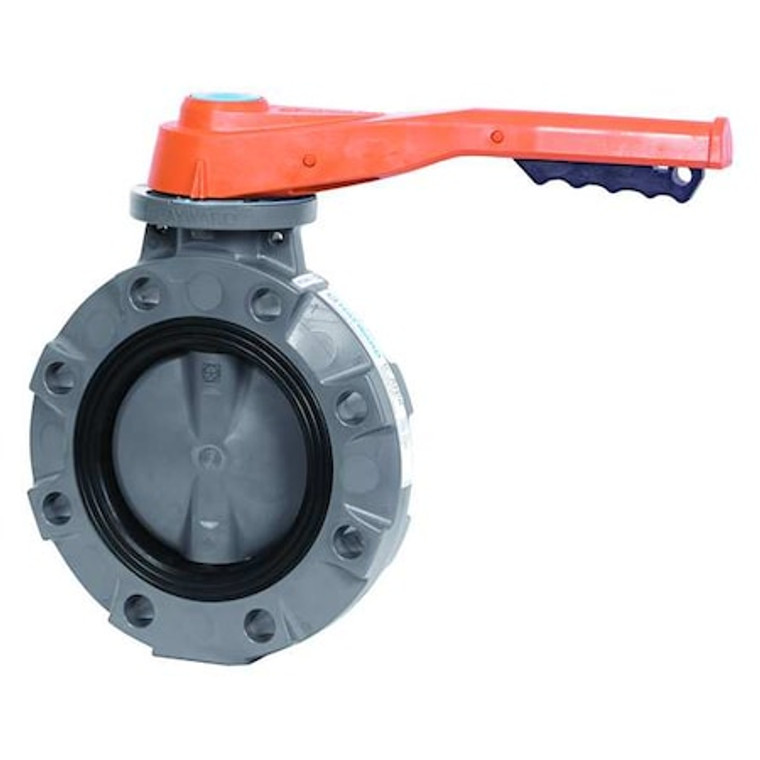

Butterfly Valve, 6", PVC/EPDM, Lever Handle - BYV11060A0EL000

Butterfly Valve, 6", PVC/EPDM, Lever Handle - BYV11060A0EL000

Hayward Flow Control
SKU:
BYV11060A0EL000
|
UPC:
610377239431
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Butterfly Valve, Wafer Style, Body Material PVC, Max. Water Pressure 150 psi, Pipe Size 6 in, Temp. Range 32 Degrees to 140 Degrees F, Liner Material EPDM, Disc Material PVC, Handle Type Lever, Number of Bolt Holes 8, Bolt Circle Dia. 9 1/2 in, Lug Dia. 7/8 in, Standards ANSI B16.10/ISO 5752, ISO 5211, NSF/ANSI 372, ASTM D1784 Cell Class 12454
Additional Information
Country of Origin:
United States
Item:
Butterfly Valve
Style:
Wafer
Body Material:
PVC
Pipe Size:
6 in
Max. Water Pressure:
150 psi
Handle Type:
Lever
Liner Material:
EPDM
Disc Material:
PVC
Bolt Circle Dia.:
9 1/2 in
Temp. Range:
32 Degrees to 140 Degrees F
Number of Bolt Holes:
8
Standards:
ANSI B16.10/ISO 5752, ISO 5211, NSF/ANSI 372
Compliance:
ASTM D1784 Cell Class 12454
Lug Dia.:
7/8 in
Handle Material:
Glass-Filled Polypropylene
Seal Material:
EPDM
Handle Length:
14 in
Operating Temperature - Minimum:
32 Degrees F
Lug Diameter:
7/8 in
Maximum Pressure - Operating:
150 psi
Operating Temperature - Maximum:
140 Degrees F
Maximum Pressure - Steam:
Not Applicable
Includes Disc Position Indicator:
Disc Position Indicator Included
Disc Alignment:
Concentric
For Media:
Chemicals, Water
Connection Type:
Wafer
Number of Flange Bolt Holes:
8
3-A Standard Compliance:
Not Rated
Handle Diameter:
Not Applicable
Manufacturer Warranty:
3 yr
Coefficient of Volume (Cv):
1,510
Handle - Locking:
Locking
Stem Material:
316 Stainless Steel
ANSI Flange Class:
Not Applicable
Nominal Valve Size:
6 in
NSF Certifications for Food and Drinking Water:
NSF 61
Vacuum Service Rating:
Not Rated
Number of Stop Positions:
19
Average Surface Roughness (Ra):
Not Applicable
Package Quantity:
1
