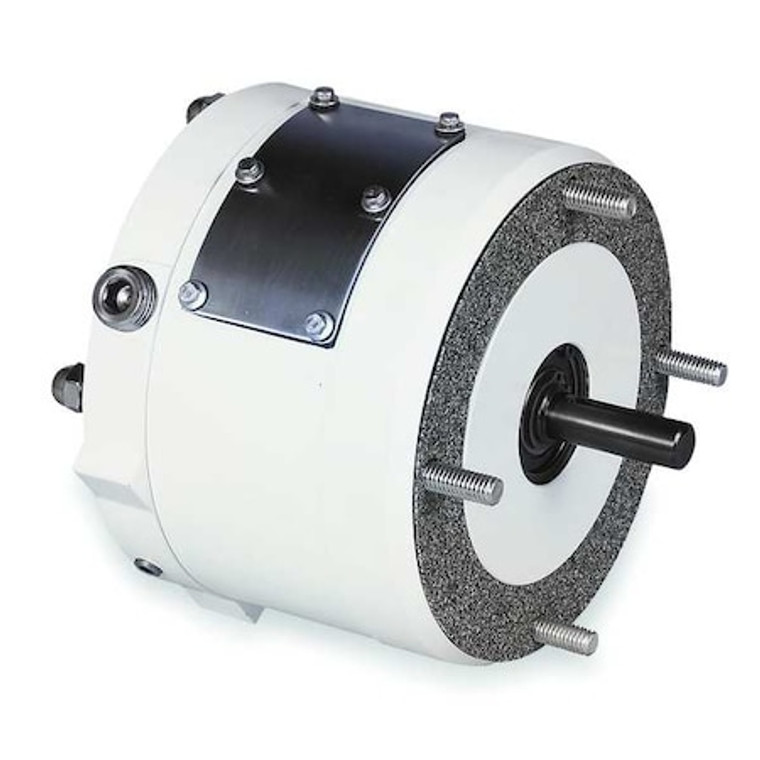

Brake, Motor, 6 Ft Lb - 1L389

Brake, Motor, 6 Ft Lb - 1L389

Dayton
SKU:
1L389
|
UPC:
190735142264
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Washdown Brake, Clutch/Brake Type C-Face Magnetic Disc, Coil Voltage 110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz, Operating Voltage 110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz, Enclosure Type Totally Enclosed, Static Torque 6 ft-lb, Motor Frame Designation 140TC NEMA, Horsepower @ RPM 2 hp @ 1725 RPM, 3 hp @ 3450 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,450 RPM, Mounting Location Between Motor and Reducer, NEMA C Face Motor
Additional Information
Country of Origin:
United States
Item:
Washdown Brake
Type:
C- Face Magnetic Disc
For Use With:
Single Phase Motors, When Wired per Instructions
Shaft Dia. (In.):
5/8 in
Coil Volts:
115/208-230V AC Or 110/208-220V AC
Static Torque (Ft.-Lb.):
6
NEMA/IEC Frame:
56C/140TC
Enclosure:
Totally Enclosed
Max. RPM:
3,450 RPM
Application:
Door Openers, For Rapid Stopping and Holding Power Conveyors, General Machine Drives
Lever Type:
Manual
Converts:
NEMA C-face motors and gearmotors to brake motors or brake gearmotors
Voltage @ 50 Hz:
110/208-220
Service Factor:
1
Max. HP @ 1725 RPM:
2 hp
Mounts On:
NEMA C Face Motor or Between Motor and Reducer
Max. HP @ 3450 RPM:
3 hp
Finish:
White Epoxy Paint
Voltage @ 60 Hz:
115/208-230
Hz:
60/50
Agency Compliance:
BISSC Certified, Complies with 3A Dairy Standards, Complies with NEMA Definition MG1-1.26.5, CSA, USDA Approved
Brake Mouting Position:
Horizontal
Phase:
Single
Ambient (C):
40 Degrees C
Lever Release:
Manual
Shaft Length:
2 in
Frequency:
50 Hz, 60 Hz
Standards:
BISSC Certified, Complies with 3A Dairy Standards, Complies with NEMA Definition MG1-1.26.5, CSA Certified, USDA Approved
Maximum Speed:
3,450 RPM
Bolt Circle Diameter:
5.875 in
Static Torque:
6 ft-lb
Operating Voltage:
110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz
Housing Material Finish:
White Epoxy Paint
Outside Diameter:
6.88 in
Motor Frame Designation:
140TC NEMA
Lead Length:
15 in
For Environment:
Food Production, Washdown
Keyway Depth:
3/32 in
Clutch/Brake Type:
C-Face Magnetic Disc
Horsepower @ RPM:
2 hp @ 1725 RPM, 3 hp @ 3450 RPM
Continuous Duty:
Yes
Mounting Orientation:
Horizontal
Overall Length:
6.94 in
Shaft Diameter:
5/8 in
Coil Voltage:
110/208-220V AC @ 50 Hz, 115/208-230V AC @ 60 Hz
Enclosure Type:
Totally Enclosed
Maximum Ambient Temperature:
40 Degrees C
Keyway Width:
3/16 in
Package Quantity:
1
