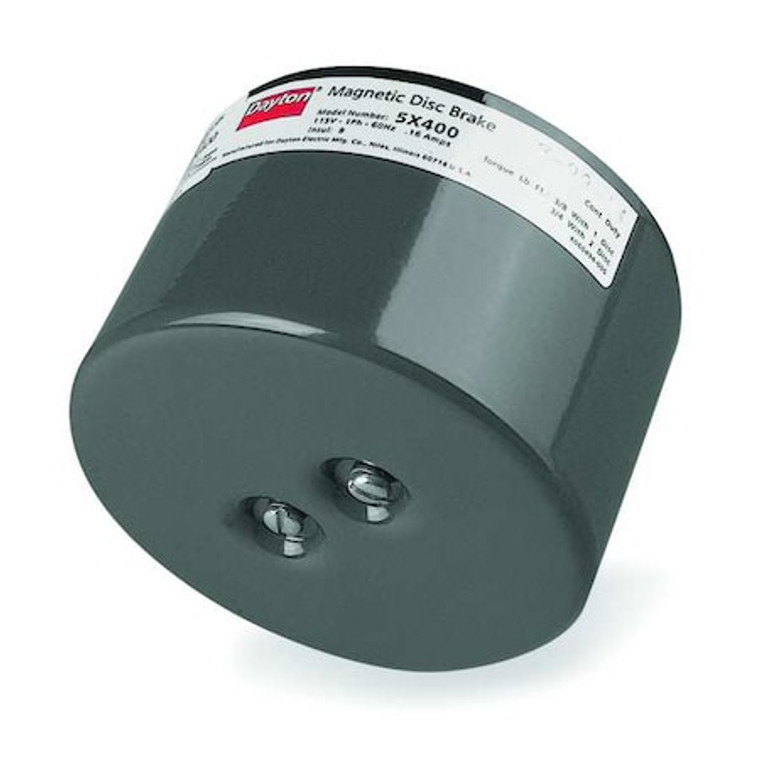

Brake, Motor - 5X400
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Brake, Motor - 5X400
Brake, Clutch/Brake Type End Mount Disc, Coil Voltage 115 V AC, Operating Voltage 115V AC, Enclosure Type Dripproof, Static Torque 0.75 lb-ft, Horsepower @ RPM 1/2 hp @ 3600 RPM, 1/4 hp @ 1800 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,600 RPM, Mounting Location 56C Motor Flange, For Use With -, Includes Brake and Instruction Manual, Continuous Duty Yes, Outside Diameter 4.06 in, Overall Length 4 in, Phase Single, Service Factor 1.4, Standards CSA Certified, ROHS Compliant
- Country of Origin:
- United States
- Item:
- Brake
- Type:
- Magnetic Disc
- Length (In.):
- 3.0313 in
- Coil Volts:
- 115V AC
- Static Torque (Ft.-Lb.):
- 0.375 ft-lb, 0.75 ft-lb
- Max. RPM:
- 2320
- Power Lead Length (In.):
- 15
- Function:
- Provide 3/4 Ft-Lb Stopping and Holding Action on 1/14 to 1/4 HP Shaded Pole, Splitphase and PSC Gearmotors
- Agency Compliance:
- CSA
- Max. HP @ 3450 RPM:
- 1/2 hp
- Hz:
- 60
- Features:
- One Disc can Easily be Removed to Reduce Torque to 3/8 ft-lb
- Application:
- Brake Attaches to the Accessory End of a Motor to Stop and Hold the Motor Shaft
- Service Factor:
- 1.4
- Converts:
- Motor to a Brake Motor
- Max. HP @ 1725 RPM:
- 1/6 hp
- Ambient (C):
- 40 Degrees C
- Brake Mouting Position:
- Horizontal
- Duty:
- Continuous
- Voltage @ 60 Hz:
- 115
- Dia. (In.):
- 4 1/16 in
- Includes:
- Brake and Instruction Manual
- Phase:
- Single
- Mounts On:
- Shaft Extension of Gearmotors by Using Brake Hub and Mounting Bolts
- Overall Length:
- 4 in
- Standards:
- CSA Certified, ROHS Compliant
- Outside Diameter:
- 4.06 in
- Operating Voltage:
- 115V AC
- Holding Current:
- 0.3/0.2 A
- Coil Voltage:
- 115 V AC
- Inrush Current:
- 6.7/3.4 A
- Shaft Diameter:
- 5/8 in
- Lever Release:
- Manual
- Continuous Duty:
- Yes
- Horsepower @ RPM:
- 1/2 hp @ 3600 RPM, 1/4 hp @ 1800 RPM
- Clutch/Brake Type:
- End Mount Disc
- Static Torque:
- 0.75 lb-ft
- Keyway Width:
- 3/16 in
- Frequency:
- 50 Hz, 60 Hz
- Maximum Speed:
- 3,600 RPM
- Housing Material Finish:
- Red Primer
- Mounting Orientation:
- Horizontal
- Keyway Depth:
- 3/32 in
- Maximum Ambient Temperature:
- 40 Degrees C
- Enclosure Type:
- Dripproof
- Package Quantity:
- 1
