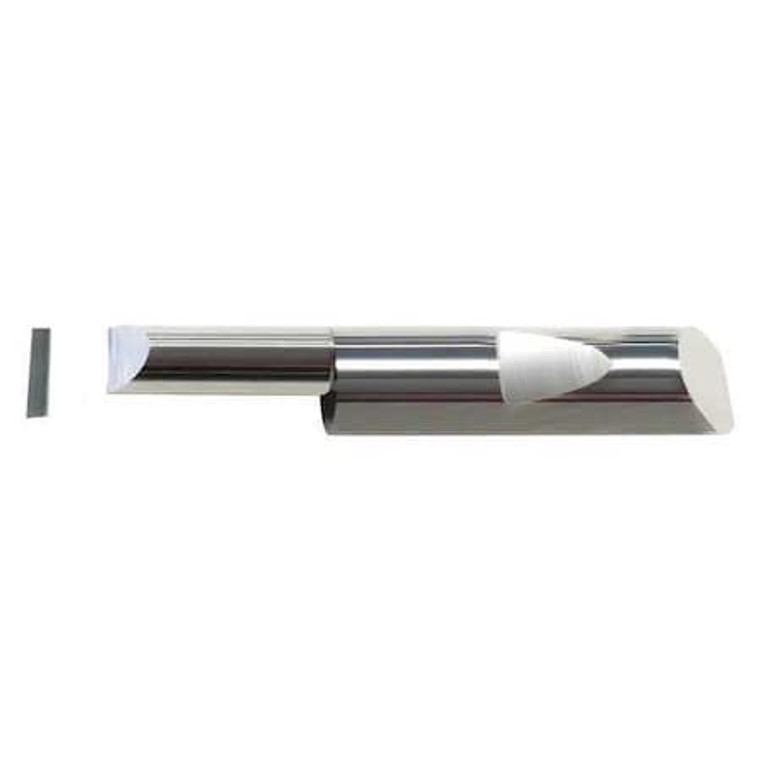

Boring Bar, 4 in L, Carbide - QBB-3602500

Name: Boring Bar, 4 in L, Carbide - QBB-3602500
Brand: Micro-Quik
SKU: QBB-3602500
Price: 89.57 USD
Availability: InStock

Micro-Quik

SKU:

QBB-3602500

UPC:

728709154052

Availability:

In Stock

(No reviews yet)

Boring Bar, Boring, Bright (Uncoated), 0.1725 in, Micro-Quik Tool Holder

Country of Origin:: United States
Item:: Boring Bar
Overall Length:: 4 in
Shank Dia.:: 3/8 in
Bore Dia.:: .360";Bore Depth=2.500""
Cutting Direction:: Right Hand
Material:: C2 Micrograin Carbide
Shank Material:: Carbide
Finish:: Uncoated
Application:: Boring
Angle:: .090";Radius=0.0050 in"
Projection:: 0.0900 in
Features:: Coolant Fed Enabled Shank Design;Corner Radius Profile;Split Geometry
Offset Point:: 0.1725 in
Max. Bore Depth:: 2-1/2 in
Finish - Machining:: Bright (Uncoated)
Series:: QBB
Min. Bore Dia.:: 0.3600 in
Side Cutting Edge Angle:: 6 Degrees
Boring Bar Type:: Boring
Compatible with Product Type:: Micro-Quik Tool Holder
Cutting Application:: Boring
Overhang:: 2.8530 in
Measurement System:: Fractional Inch
Center to Cutting Tip:: 0.1725 in
Groove Width:: 0.2000";Neck Dia.=0.2700""
Corner Radius:: 0.005";Material - Machining=Carbide"
Package Quantity:: 1
