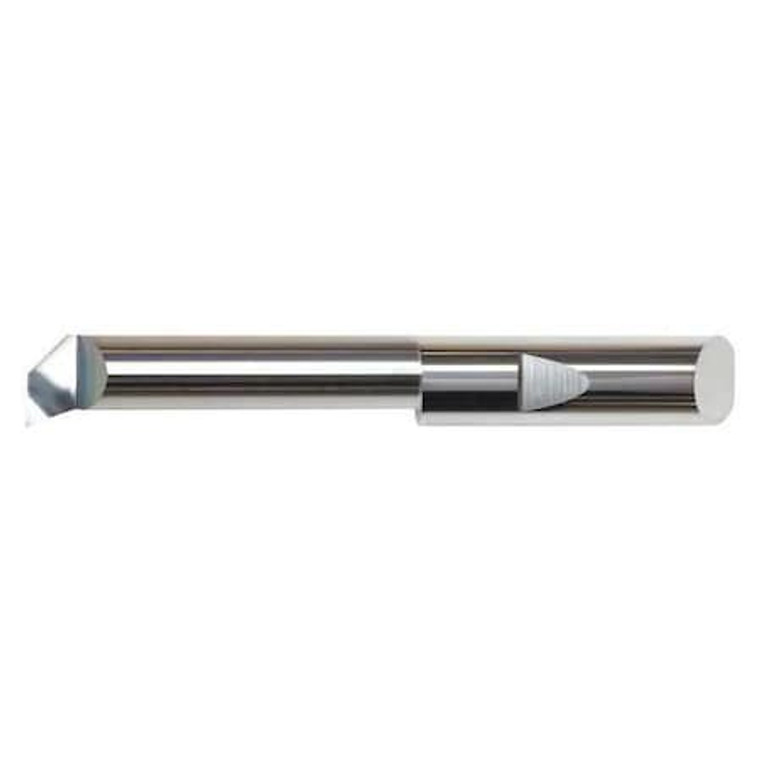

Boring Bar, 3 in L, Carbide - QBT-3601600X

Boring Bar, 3 in L, Carbide - QBT-3601600X

Micro 100
SKU:
QBT-3601600X
|
UPC:
728709155509
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Boring Bar, Top Rake Chipbreaker, AlTiN, 0.1730 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Overall Length:
3 in
Shank Dia.:
3/8 in
Bore Dia.:
.360";Cutting Direction=Right Hand"
Bore Depth:
1.60";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Angle:
.050";Application=For Boring Top Rake"
Finish:
AlTiN Coated
Radius:
0.0060 in
Projection:
0.0500 in
Series:
QBT
Measurement System:
Fractional Inch
Overhang:
1.8530 in
Min. Bore Dia.:
0.3600 in
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Finish - Machining:
AlTiN
Compatible with Product Type:
Micro-Quik Tool Holder
Cutting Application:
Boring, Finishing
Boring Bar Type:
Top Rake Chipbreaker
Center to Cutting Tip:
0.1730 in
Max. Bore Depth:
1.6000 in
Offset Point:
0.1730 in
Side Cutting Edge Angle:
20 Degrees
Offset:
0.155";Neck Dia.=0.3100""
Groove Width:
0.1420";Split Length=0.220""
Corner Radius:
0.006";Material - Machining=Carbide"
Package Quantity:
1
