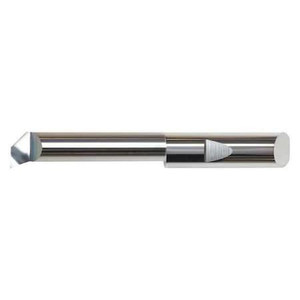

Boring Bar, 3 in L, Carbide - QBT-2301600X

Boring Bar, 3 in L, Carbide - QBT-2301600X

Micro 100
SKU:
QBT-2301600X
|
UPC:
728709155387
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Boring Bar, Top Rake Chipbreaker, AlTiN, 0.0740 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Overall Length:
3 in
Shank Dia.:
5/16 in
Bore Dia.:
.230";Cutting Direction=Right Hand"
Bore Depth:
1.60";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Finish:
AlTiN Coated
Application:
For Boring Top Rake
Angle:
.040";Radius=0.0060 in"
Projection:
0.0400 in
Cutting Application:
Boring, Finishing
Compatible with Product Type:
Micro-Quik Tool Holder
Finish - Machining:
AlTiN
Measurement System:
Fractional Inch
Min. Bore Dia.:
0.2300 in
Series:
QBT
Overhang:
1.8530 in
Side Cutting Edge Angle:
20 Degrees
Max. Bore Depth:
1.6000 in
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Boring Bar Type:
Top Rake Chipbreaker
Offset Point:
0.0740 in
Center to Cutting Tip:
0.0740 in
Neck Dia.:
0.1900";Groove Width=0.1150""
Offset:
0.095";Corner Radius=0.006""
Split Length:
0.170";Material - Machining=Carbide"
Package Quantity:
1
